This indicator is compatible with all Tacuna Systems load cells – all capacities, all brands. However, this indicator must be calibrated to the paired load cell. This can be done by the user with a known load (2/3 of full capacity) or with Tacuna Systems Load Cell Calibration Service.
AnyLoad 805TS Digital Weight Indicator Features:

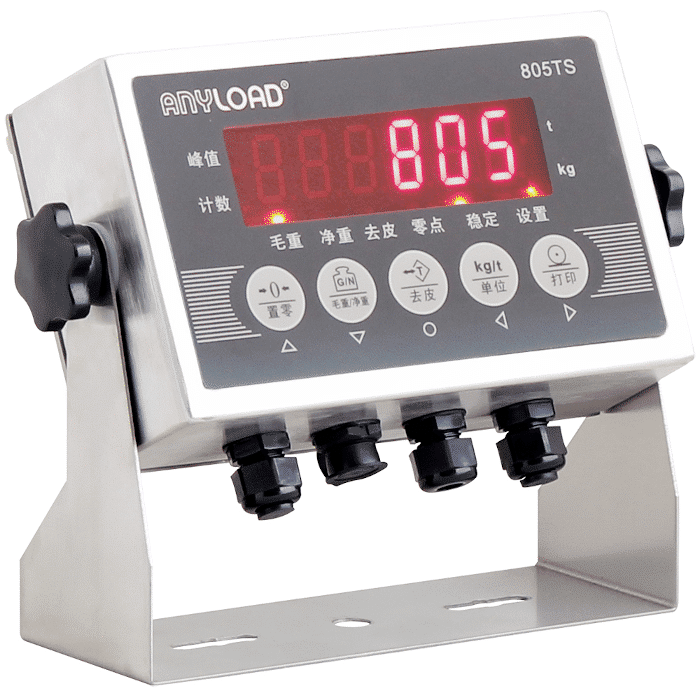

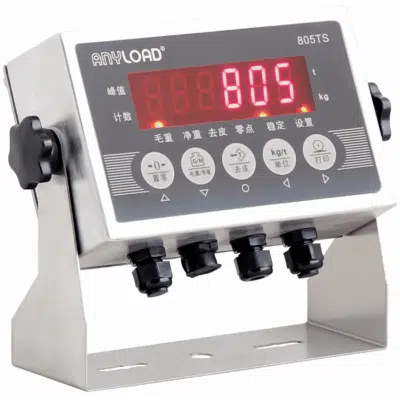

The ANYLOAD 805TS digital weight indicator is a general purpose indicator that provides high accuracy and reliability with multiple functions. The 805TS stainless load cell indicator has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles per second and drives up to eight 350O or sixteen 700O load cells. With a SS304 stainless steel wash down enclosure, the 805TS ANYLOAD digital weighing indicator is ideal for the food industry, agricultural industry, and industrial applications and has the added bonus of being NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000 approved.
- NTEP III/IIIL, 10 000 approved
- Measurement Canada III, 10 000; III HD 20 000
- Material: Stainless steel SS304
- IP Rating: IP66
- LED 6-digit display
- Power Supply: AC adaptor, 100-240VAC, 50-60Hz
- Parameter and calibration settings are performed on the front panel
- LABRADOR computer software for parameter and calibration settings
- Units of Measurement: kg, lb
- Improper operation and fault indication
- Two way relay signal output
- Equipped with RS-232 and RS-485 connecting ports
- Print functions with programmable print format
- Built-in clock
AnyLoad 805TS-B / 805TS-B-16 Digital Weight Indicator General Specifications:
- Enclosure Material: Stainless steel SS304
- Units of Measurement: kg, lb
- Working Humidity: ?90% RH
- Working Temperature: -10°C to 40°C/14°F to 104°F
- Dimensions (mm): 226mm x 94mm x 161mm
- Dimensions (in): 8.9in x 3.7in x 6.34in
- Display Type: LED
- Display Digits: 6 digits
- Digit Height: 25.4mm/1in
- Display Dimensions: 143mm x 41mm/5.6in x 1.6in
- Power Supply: AC adaptor, 100-240VAC, 6VDC 1.5A, 50-60Hz
- IP Rating: IP66
AnyLoad 805TS-B-17 Digital Weight Indicator General Specifications:
- Enclosure Material: Stainless steel SS304
- Units of Measurement: kg, lb
- Working Humidity: ?90% RH
- Working Temperature: -10°C to 40°C/14°F to 104°F
- Dimensions (mm): 226mm x 94mm x 161mm
- Dimensions (in): 8.9in x 3.7in x 6.34in
- Display Type: LED
- Display Digits: 6 digits
- Digit Height: 25.4mm/1in
- Display Dimensions: 143mm x 41mm/5.6in x 1.6in
- Power Supply: External AC linear adaptor, 110VAC +10%-15%, 9VDC 600mA, 50-60Hz or External AC linear adaptor, 220VAC +10%-15%, 9VDC 600mA, 50-60Hz
- IP Rating: IP66
AnyLoad 805TS-B / 805TS-B-16 Digital Weight Indicator Technical Specifications:
- Division: 1, 2, 5, 10
- Tare Range: 100% of Cn
- Maximum Number of Load Cells: 8×350? or 16×700?
- Maximum Power Consumption: 6VA
- Excitation Voltage: 5VDC ± 5%
- Fusible Link Fuse (slow blow): 1A
- Communications Interface: RS-232 and RS-485
- Update Rate (Display Rate): N/A
- Print Interface: Serial interface
AnyLoad 805TS-B-17 Digital Weight Indicator Technical Specifications:
- Division: 1, 2, 5, 10
- Tare Range: 100% of Cn
- Maximum Number of Load Cells: 8×350? or 16×700?
- Maximum Power Consumption: 6VA
- Excitation Voltage: 5VDC ± 5%
- Fusible Link Fuse (slow blow): 1A
- Communications Interface: RS-232 and RS-485
- Update Rate (Display Rate): 20ms
- Print Interface: Serial interface
AnyLoad 805TS-B / 805TS-B-16 Digital Weight Indicator Functions
- Auto Zero Scale
- Auto Zero Tracking
- Normal Weighing
- Counting
- Peak
- Zero Scale
- Tare
- Gross / Net
- Alarm when load exceeds the maximum load capacity of the scale or load cell
- RS-232 and RS-485
- Two-way relay signal output
- Print Interface (PS805)
- Labrador software for parameter and calibration settings
AnyLoad 805TS-B-17 Digital Weight Indicator Functions
- Auto and Manual Zero Scale
- Auto Zero Tracking
- Normal Weighing
- Counting
- Peak
- Zero Scale
- Tare
- Gross / Net
- Alarm when load exceeds the maximum load capacity of the scale or load cell
- Password to provide easy method in adjusting the parameter settings without opening the back panel. Only if legal for trade is not required
- RS-232 and RS-485
- Two-way relay signal output
- Print Interface (PS805)
- No Labrador software support
AnyLoad 805TS Digital Weight Indicator Approvals:
NTEP Certificate of Conformance
CE Certificate of Conformity – Electromagnetic Compatibility Directive
CE Certificate of Conformity – Low Voltage Directive
AnyLoad 805TS Digital Weight Indicator Tutorial Videos:
AnyLoad 805TS Digital Weight Indicator Datasheet:
View data sheet for 805TS-B-16
View data sheet for 805TS-B-17
AnyLoad 805TS Digital Weight Indicator Manual:
