ANYLOAD A1A-D25 Load Cell Amplifier

The ANYLOAD A1A-D25 Load Cell Amplifier provides signal conditioning for a single load cell or multiple load cells through a junction box, supporting up to 4 x 350Ω or 8 x 700Ω load cells. Housed in an IP66-rated aluminum casting enclosure, it ensures durability and protection. This D25 model features a digitizer module with RS232 and RS485 communication interfaces, both supporting MODBUS protocol, making it versatile and reliable for various applications.

For a quick comparison of our amplifier products, see our Load Cell Amplifier Comparison Table in our Knowledge Base.

Options

Clear

Title	Quantity	Price
1-9	1 - 9	0% $346.00
10-24	10 - 24	5% $328.70
25-49	25 - 49	8% $318.32
50-99	50 - 99	11% $307.94
100+	100 +	15% $294.10

Tacuna Systems Price Match Guarantee

SKU: A1A-D25 Category: Load Cell Amplifiers & Signal Conditioners

ANYLOAD A1A-D25 Load Cell Amplifier

The ANYLOAD A1A-D25 Load Cell Amplifier is a versatile DC-powered amplifier designed for load cell and transducer signal conditioning. It can directly drive a single load cell or support multiple load cells through a junction box, accommodating up to 4 x 350Ω or 8 x 700Ω load cells. Encased in a robust aluminum casting enclosure, it offers IP66-rated ingress protection, ensuring durability in harsh environments. The D25 model features a digitizer module with RS232 and RS485 communication interfaces, both supporting MODBUS protocol, enhancing its compatibility and communication capabilities. This amplifier is ideal for a wide range of industrial applications requiring reliable and precise load cell signal conditioning.

Features:

DC-Powered
Small volume and enable to mount inside of load cell
One input port can connect directly to 1 x 350 Ω load cell, or max 4 x 350 Ω (or higher resistance) load cells through a junction box

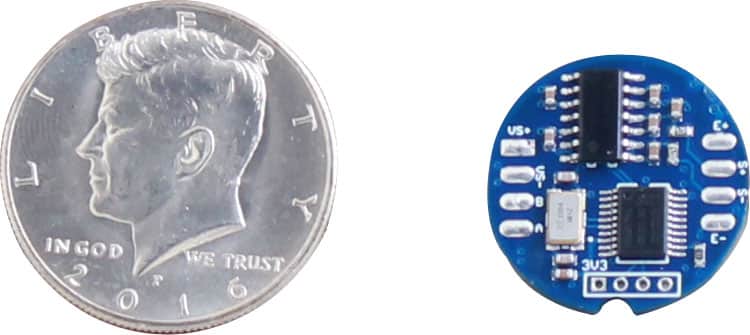

24-bit A/D Converter, high-speed processor
Internal digital filter and strong anti-interference ability
Contains the ability for 9 points linear calibration
Applied to all kinds of strain gauge bridge-type load cells, such as tension, compression, torque, and so on.
Suitable for all strain gauge bridge-type load cells

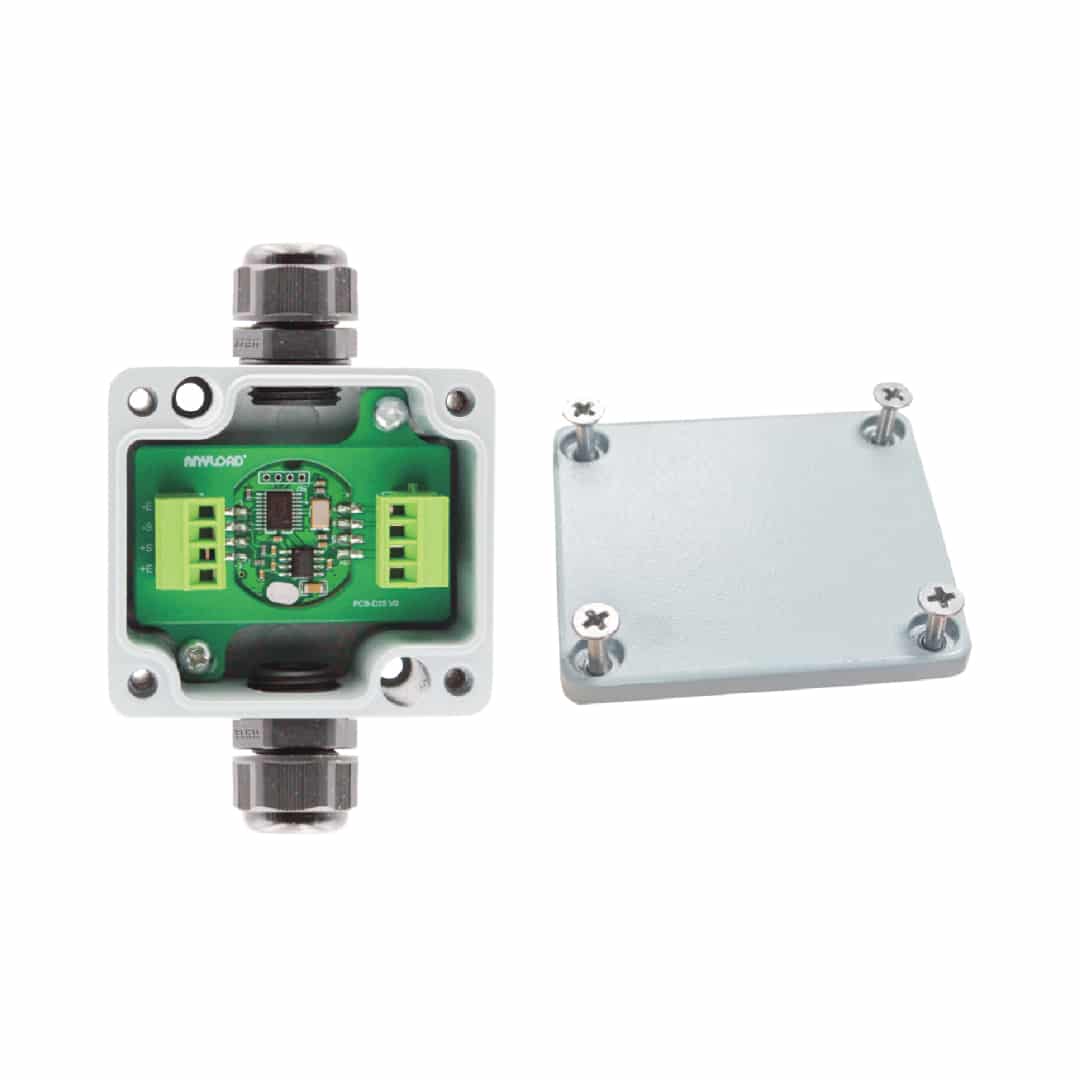

Enclosed in aluminum casting
Contains 2 through holes for quick installation

Available Options: A1A-D2507 (RS232 interface), A1A-D2508 (RS485 interface)

Please contact us with any product-related questions.

Specifications

ANYLOAD A1A-D25 Load Cell Amplifier Specifications

Load Cell Type	All strain gauge types
Capacity	1×350Ω directly connected or 4×350Ω+ through a junction box
Power Supply	9-24 V DC
Input Range	0.8~3.9 mV/V
Output Signal	RS232(A1A-DM2507C)/ RS485(A1A-DM2508C)/ CAN Bus(A1A-DC2508C)
Communication Protocol	Modubus RTU/CANOpen
Resolution	>1000000
Temperature Coefficient	≤100ppm/°C
Operating Temperature Range	-22 °F to 122 °F / -30 °C to 50 °C
Excitation to Load Cell	5V
