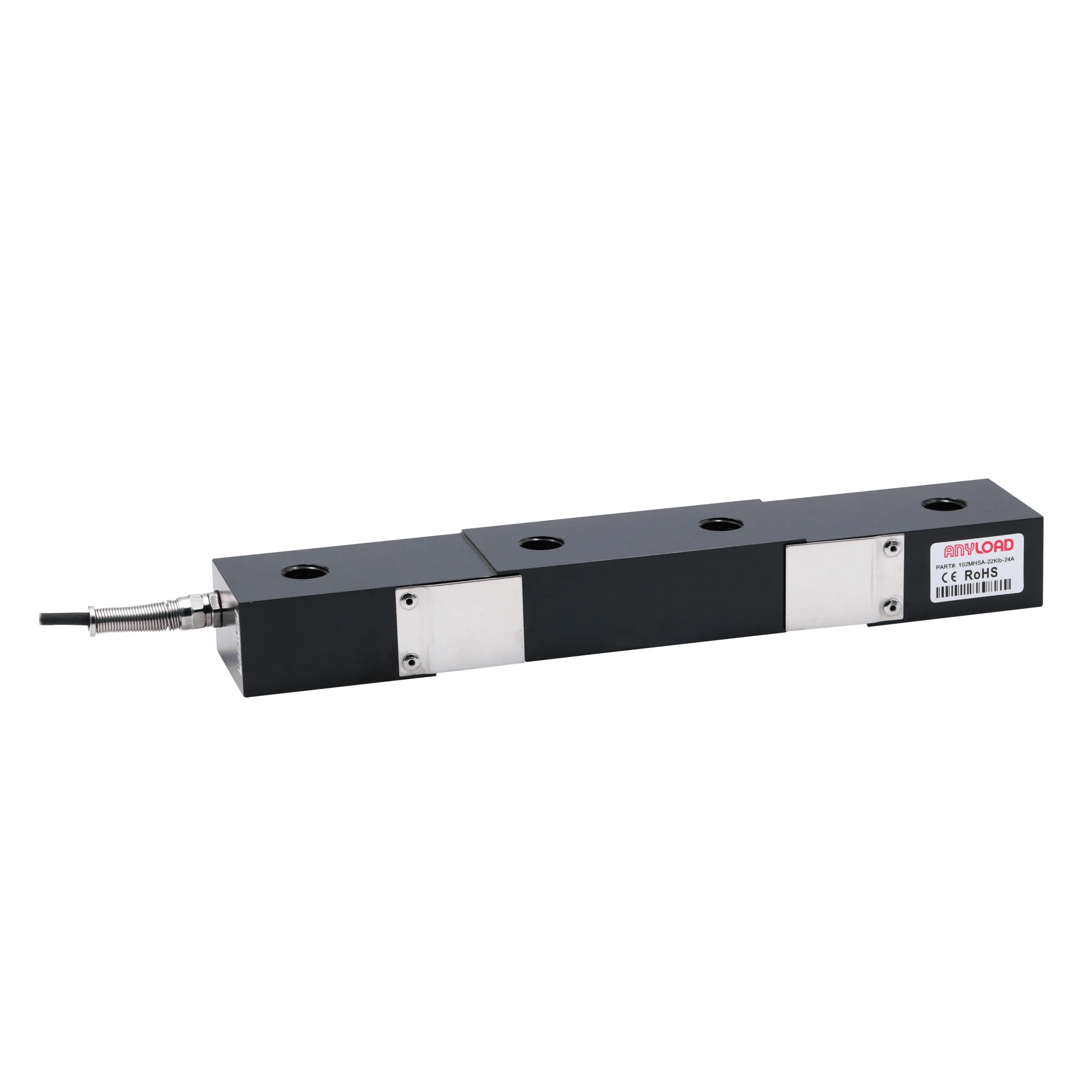

ANYLOAD 102MH-AA Alloy Steel Double-Ended Beam Load Cell
The 102MH-AA is a robust, low-profile load cell designed for onboard weighing applications, particularly in agricultural equipment. Featuring superior corrosion resistance with EPD coating and side force protection, it ensures reliable performance in harsh environments. With a 22Klb capacity, IP67 protection, and multiple safety certifications, it offers precision, durability, and flexibility for custom requirements.
| Quantity | Price |
|---|---|
| 1 - 9 | $918.00 |
| 10 - 24 | $872.10 |
| 25 - 49 | $844.56 |
| 50 - 99 | $817.02 |
| 100 + | $780.30 |
ANYLOAD 102MH-AA Features
The 102MH-AA is a robust and precision-engineered load cell specifically designed for onboard weighing applications, ensuring reliable performance even in demanding agricultural environments. Its low-profile design allows seamless integration into mobile weighing systems, while the black electrophoretic (EPD) coating provides exceptional resistance to fertilizer corrosion and harsh field conditions. Constructed from high-strength nickel-plated alloy steel, the 102MH-AA offers outstanding durability and protection against side forces and uplift. With a rated capacity of 22Klb and a full-scale output of 2.0mV/V ±0.5%, it delivers consistent and accurate measurements under varying loads. The load cell is environmentally sealed to IP67 standards and is CE, RoHS, and Ex(NEPSI) certified, with ATEX, FM, and IECEx options available upon request. Customization options are also offered to meet specific dimensional and performance requirements for specialized applications.
- Designed for On-Board Weighing applications
- Side force and uplift protection
- Highly corrosion-resistant
- Element Material: Alloy steel, Nickel Plated, Black Electrophoretic Plating
- Rated Capacity: 22Klb
- Full Scale Output: 2.0mV/V ± 0.5%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP67
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Available Option: 22Klb
Please contact us with any product-related questions.
Specifications
ANYLOAD 102MH-AA Load Cell Specifications
| Rated Capacity | 22Klb |
| Full-Scale Output | 2.0 mV/V ± 0.5% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.1% |
| Repeatability | < ± 0.1% |
| Hysteresis Error | < ± 0.1% |
| Creep in 30 minutes | < ± 0.1% |
| Input Resistance | 770Ω ± 50Ω |
| Output Resistance | 700Ω ± 5 |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2 (50V DC) GΩ |
| Compensated Temperature Range | -15°C to 60°C/5°F to 140°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
