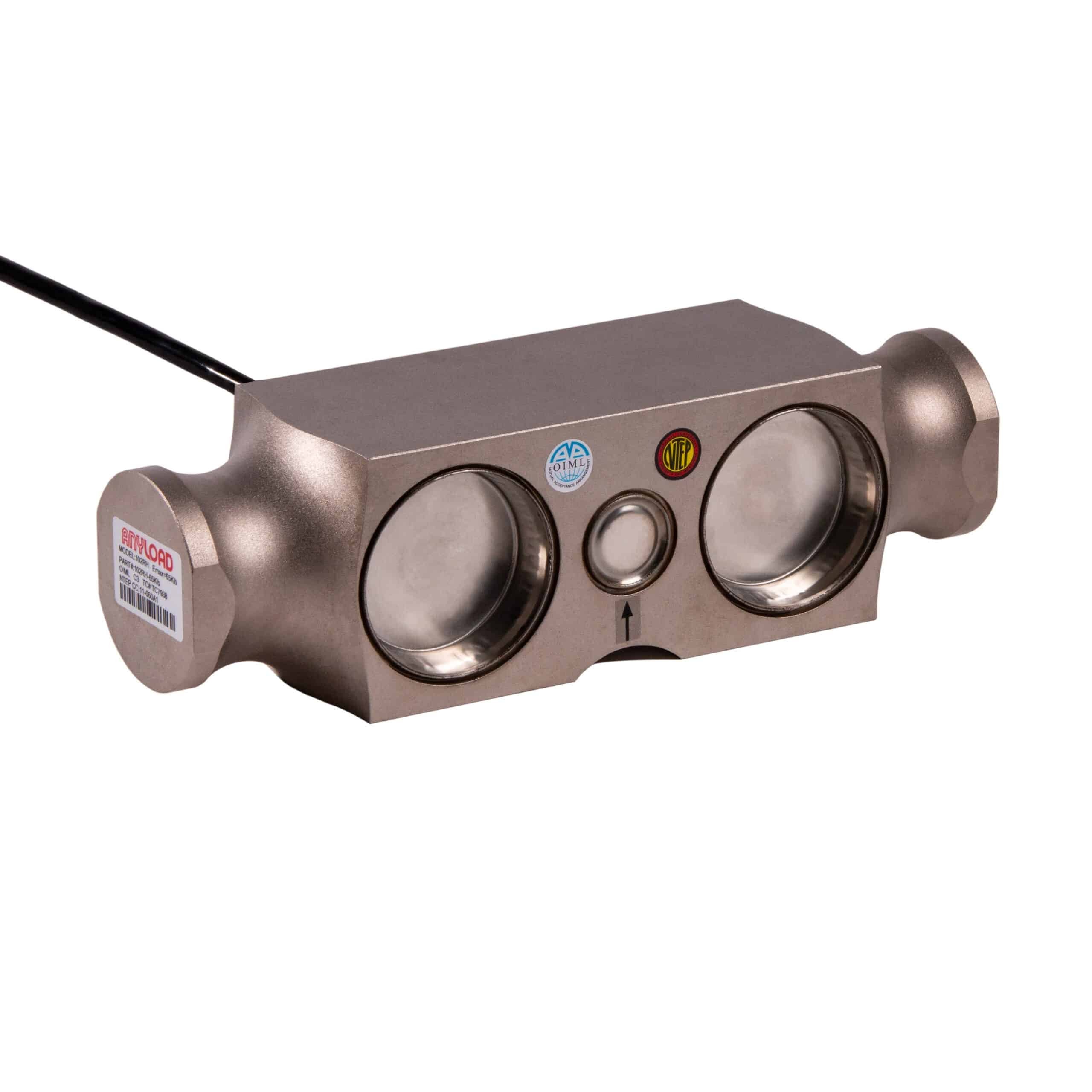

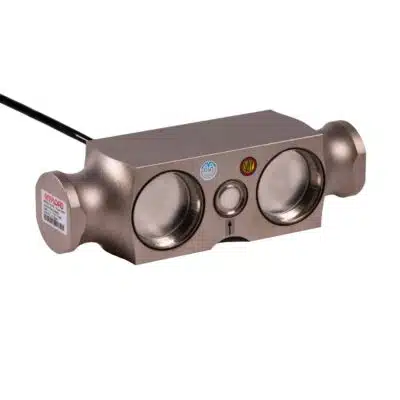

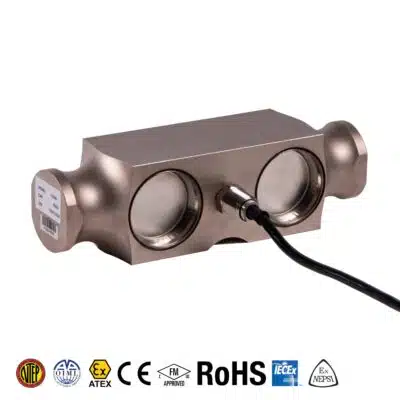

ANYLOAD 102RH Alloy Steel Double-Ended Beam Load Cell
The double-ended shear beam load cell, made from heavy-duty alloy steel with welded seals for IP68 water resistance, is designed for high-capacity applications in tough environments. Its low-profile, center-supported structure and link ends for movement make it ideal for truck and railroad scales, with capacities ranging from 50Klb to 125Klb.
Other capacities and configurations are available – please contact us with any questions.
| Quantity | Price |
|---|---|
| 1 - 9 | $760.00 |
| 10 - 24 | $722.00 |
| 25 - 49 | $699.20 |
| 50 - 99 | $676.40 |
| 100 + | $646.00 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 102RH Features
The double-ended shear beam load cell, built with heavy-duty alloy steel and welded seals, offers IP68-class water resistance for reliable performance in harsh environments. Its robust, low-profile design is center-supported, making it ideal for high-capacity applications, such as truck and railroad scales. The load cell is available in rated capacities ranging from 50Klb to 125Klb, providing the versatility to handle various industrial demands. Featuring link ends, it allows for controlled movement during the weighing process, enhancing accuracy. Designed for easy integration into diverse systems, this load cell ensures durability and efficiency under challenging operating conditions.
- Material: Alloy steel
- Rated Capacities: 50Klb, 65Klb, 75Klb, 100Klb, 125Klb, 10t, 15t
- Full-Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 50Klb-125Klb
- OIML MAA C4, Y=15 000 certified from 11t-55t
- CE, RoHS, and Ex-certified
Available Options: 50Klb, 65Klb, 75Klb, 100Klb & 125Klb
Please contact us with product-related questions.
Specifications
ANYLOAD 102RH Load Cell Specifications
| Rated Capacity | 50Klb, 65Klb, 100Klb, 125Klb, 10t, 15t |
| Full Scale Output | 3mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
3D Drawing
 |
102RH-(50-65)klb |
|---|---|
|
102RH-(100-125)klb |
|
102RH-(10-15)t |
Interchangeable Cross Reference
ANYLOAD 102RH Equivalents
| Manufacturer | Equivalent Model |
| Coti Global | CG-5223 |
| Rice Lake | RL75223 |
| Vishay Revere Transducers | 5223 |
| Vishay Sensortronics | 65040-1127W |
* No Cφ 5 hole
(Not interchangeable with 100Klb, 125Klb of CG-5223; Interchangeable with 100Klb, 125Klb of RL75223, 5223, 65040-1127W)
For the Cφ 5 hole, refer to the datasheet
