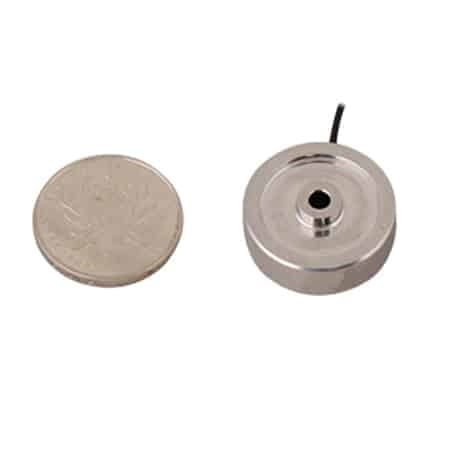

ANYLOAD 296AS Stainless Steel Load Button
The 296AS load button is a compact force measurement solution with IP66 waterproof stainless steel construction, ideal for applications prioritizing weight and space conservation. Its innovative design allows a bolt to pass through vertically to measure compressive forces. This reliable transducer measures loads from 50 Newtons to 100,000 Newtons, fitting into extremely tight spaces while meeting major international safety standards.
| Quantity | Price |
|---|---|
| 1 - 9 | $720.00 |
| 10 - 24 | $684.00 |
| 25 - 49 | $662.40 |
| 50 - 99 | $640.80 |
| 100 + | $612.00 |
ANYLOAD 296AS Features
The 296AS load button is a compact and innovative force measurement solution designed for applications where weight and space conservation are critical. Its 17-4PH stainless steel construction ensures durability and reliability, while its IP66 waterproof rating provides superior environmental protection. The unique design allows a bolt to pass vertically through the center, making it an efficient and time-saving solution for measuring compressive forces. Capable of measuring loads from 50 Newtons to 100,000 Newtons, the 296AS is suitable for a wide range of applications, from very small to very large loads. This load cell meets major international safety standards, ensuring its performance and safety in diverse environments. Its compact size and robust construction make it an ideal choice for tight spaces without compromising measurement accuracy.
- Material: Stainless Steel
- Rated Capacities: 50N, 100N, 500N, 5kN, 20kN, 50kN, 100kN
- Full-Scale Output: Cap. ≤ 50N: 1.0mV/V ± 20%; Cap. > 50N: 2.0mV/V ± 20%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- Environmentally Sealed; IP Rating: IP66
- 3m Cable
- Note installation screw sizes on Datasheet
- CE and RoHS Certified
Available options: 50N, 100N, 500N, 5kN, 20kN, 50kN & 100kN.
Please contact us with any product-related questions.
Specifications
ANYLOAD 296AS Transducer Specifications
| Rated Capacity | 50N, 100N, 500N, 5kN, 20kN, 50kN, 100kN |
| Full Scale Output | Capacities. ≤ 50N: 1.0mV/V ± 20% Capacities > 50N: 2.0mV/V ± 20% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.05% |
| Repeatability | < ± 0.05% |
| Hysteresis Error | < ± 0.05% |
| Creep in 30 minutes | < ± 0.05% |
| Input Resistance | 700Ω ± 25Ω |
| Output Resistance | 700Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Technical Documents
 |
296AS Transducer Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
