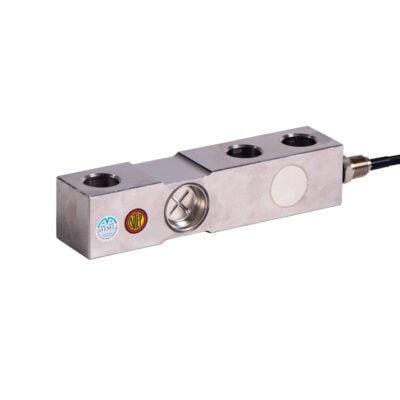

ANYLOAD 563YS30 Stainless Steel Single-Ended Beam Load Cell
The 563YS30 Single-Ended Beam Load Cell is a medium to high-capacity weighing solution with stainless steel welded-seal construction and IP68 water and corrosion resistance. This 3mV/V iteration offers reliable performance in applications like platform scales, hopper scales, and tank scales, and is interchangeable with models from VPG, Rice Lake, HBM, and Coti Global. It’s easy to install and ideal for OEM use. An optional 563YSM3 compression weigh module is available for optimal loading and protection from irregular forces.
Available in 500lb-20Klb capacities as standard options, it has other capacities available upon request—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $312.00 |
| 10 - 24 | $296.40 |
| 25 - 49 | $287.04 |
| 50 - 99 | $277.68 |
| 100 + | $265.20 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YS30 Features
The 563YS30 Single-Ended Beam Load Cell is a medium to high-capacity weighing solution, featuring stainless steel welded-seal construction with IP68-rated water and corrosion resistance. This 3mV/V iteration of the 563YS model is designed for reliable performance in demanding environments, making it ideal for platform scales, hopper scales, tank scales, and process weighing. Its low-profile design is easy to install and is interchangeable with models from VPG, Rice Lake, HBM, and Coti Global, providing versatile compatibility for various applications, including OEM use. To facilitate proper loading and installation, the 563YS30 can be paired with the 563YSM3 compression weigh module, which offers easy mounting, thermal expansion allowance, and protection from irregular loading and lifting forces. This cost-effective load cell is an excellent choice for those seeking durability and accuracy in industrial weighing applications.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb
- Full-Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:5 000 Class III, Multiple Cell certified from 1Klb-10Klb
- CE, RoHS, and Ex certified
Available Options: 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb & 20Klb.
Installation Modules: ANYLOAD 563YSM2, 563YSM3
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YS30 Load Cell Specifications
| Rated Capacity | 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb |
| Full-Scale Output | 3mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.023% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 350Ω ± 7Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
3D Drawing
 |
563YS-(250-2000)kg |
|
563YS-(500-4000, SE5000)lb |
|
563YS-(5-10)klb |
|
563YS-(15-20)klb |
|
563YS-(3-5)t |
|
563YS-10t |
Interchangeable Cross Reference
ANYOAD 563YS30 Equivalents
| Manufacturer | Equivalent Model | Info |
| Coti Global | CG-23-SSW-03 | |
| HBM | B35 | Environmentally Sealed |
| HBM | H35 | Welded Seal |
| Mettler-Toledo | 0793 | |
| Rice Lake | RL35023S | Environmentally Sealed |
| Rice Lake | RL35083 | |
| Rice Lake | RL39123 | |
| Vishay Celtron | SQB-HSS | |
| Vishay Revere Transducers | 9123 | |
| Vishay Sensortronics | 65023S | Environmentally Sealed |
| Vishay Sensortronics | 65023SS | Environmentally Sealed for capacities 1Klb-10Klb |
| Vishay Sensortronics | 65083 | |
| Vishay Tedea-Huntleigh | 3510-lbs |
