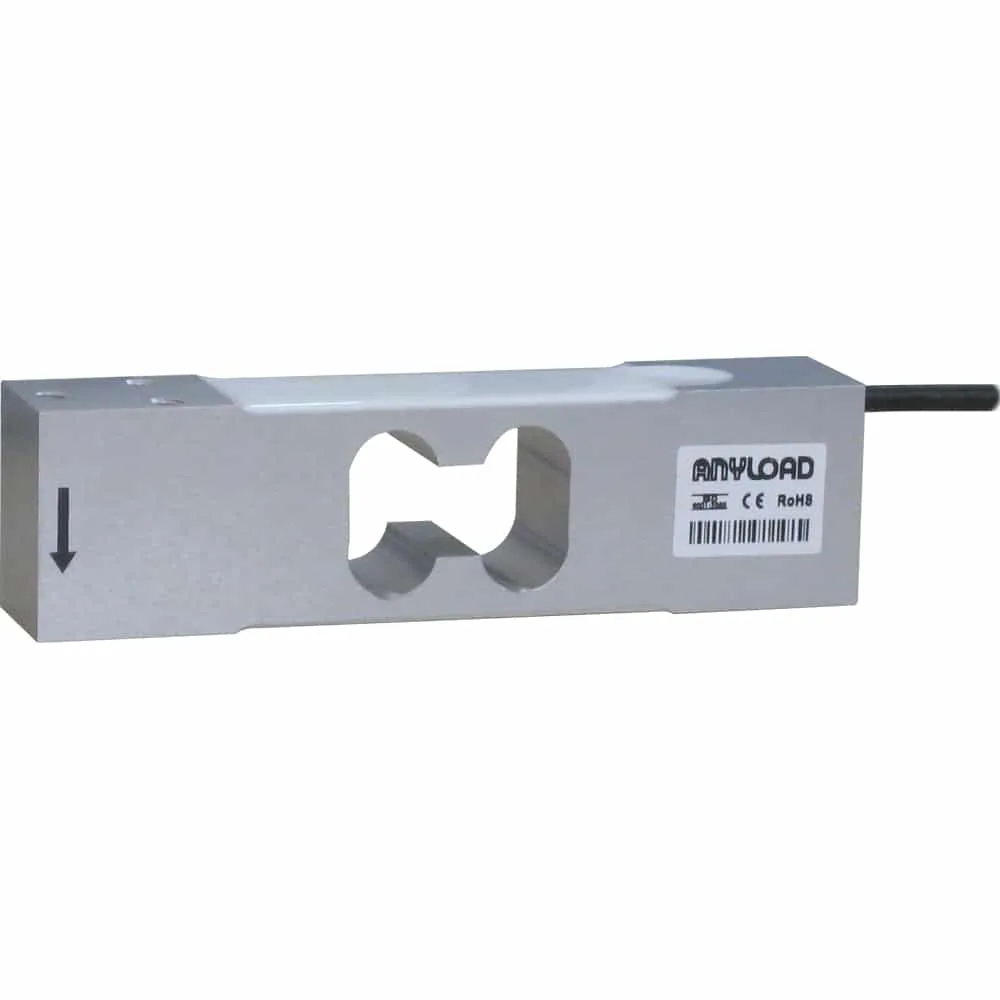

ANYLOAD 108TAAD Aluminum Single Point Load Cell
The 108TAAD is an OIML C3-certified, single-point load cell known for its high accuracy and affordability, making it ideal for lower-capacity applications such as platform scales, retail scales, process weighing, and more. Interchangeable with the A&D LC-4102, the 108TAAD is available in capacities ranging from 30kg to 150kg. Its aluminum body provides IP66-rated ingress protection, making it a popular choice for process supervision systems, retail checkout, postal scales, packaging devices, and airport baggage systems.
Other capacities and configurations may be available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $348.00 |
| 10 - 24 | $330.60 |
| 25 - 49 | $320.16 |
| 50 - 99 | $309.72 |
| 100 + | $295.80 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108TAAD Features
The 108TAAD is a high-precision, OIML C3-certified single-point load cell designed to deliver exceptional performance in a variety of lower-capacity applications. With its robust aluminum construction and IP66-rated ingress protection, it ensures durability and reliability even in demanding environments. Available in capacities ranging from 30kg to 150kg, the 108TAAD is perfect for use in platform scales, retail scales, process weighing, and more. Its compatibility with the A&D LC-4102 makes it a versatile and cost-effective choice for many industries. Commonly utilized in process supervision systems, retail checkout, postal scales, packaging devices, and airport baggage systems, the 108TAAD meets stringent industry safety standards while maintaining affordability.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 30kg, 60kg, 150kg
- Full-Scale Output: 1mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- OIML C3 certified from 1kg-200kg
- CE and RoHS certified
Available Options: 30kg, 60kg & 150kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108TAAD Load Cell Specifications
| Rated Capacity | 30kg, 60kg, 150kg |
| Reference Max. Platform Size | 400mm x 400mm |
| Full-Scale Output | 1mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
Technical Documents
 |
108TAAD Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity |
3D Drawing
 |
108TAAD-(30-150)kg |
Interchangeable Cross Reference
ANYLOAD 108TAAD Equivalents
| Manufacturer | Equivalent Model |
| A & D | LC-4102 |
