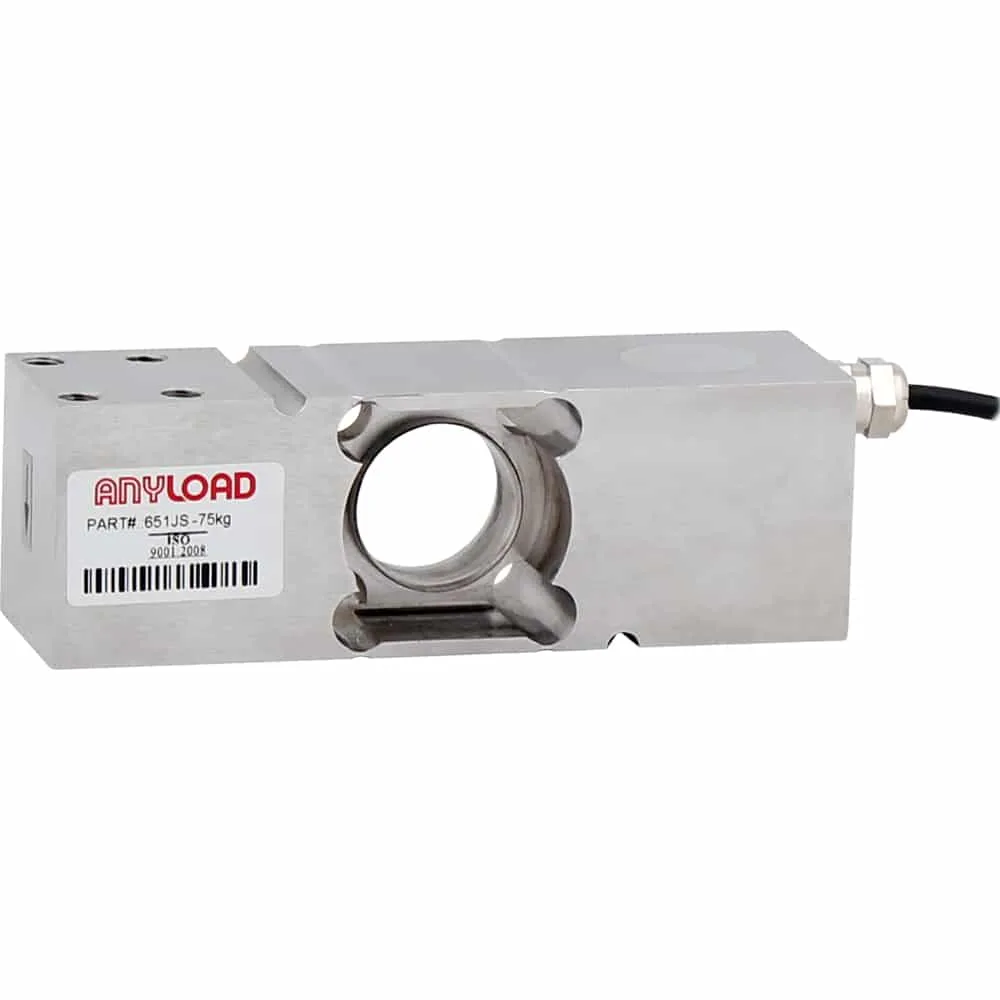

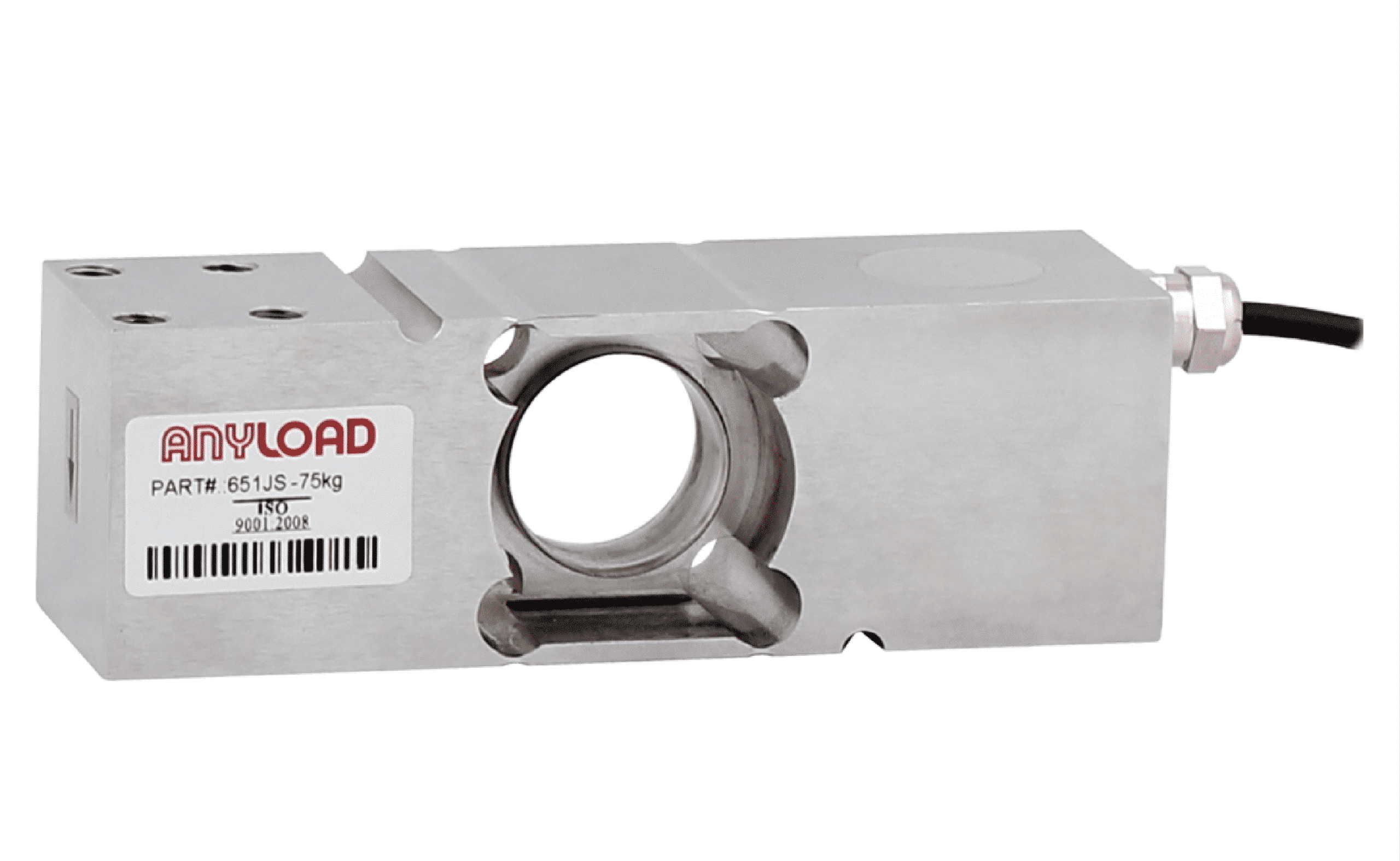

ANYLOAD 651JS Stainless Steel Single Point Load Cell
The ANYLOAD 651JS Stainless Steel Single Point Load Cell is the highest accuracy OIML-certified “legal for trade” load cell available, ranging from 10kg to 100kg. With IP68/69K-rated 17-4PH stainless steel construction, it offers exceptional durability and protection against dust, water immersion, and steam jet cleaning. The 651JS is ideal for a wide range of weighing applications, providing reliable performance in harsh environments.
Other capacities and configurations may be available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,056.00 |
| 10 - 24 | $1,003.20 |
| 25 - 49 | $971.52 |
| 50 - 99 | $939.84 |
| 100 + | $897.60 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 651JS Features
The ANYLOAD 651JS Stainless Steel Single Point Load Cell is the pinnacle of accuracy in legal-for-trade weighing, boasting an OIML C9 certification for capacities ranging from 10kg to 100kg. Engineered with a welded-seal 17-4PH stainless steel construction, it offers an IP68/69K ingress protection rating, ensuring exceptional durability in harsh environments, including resistance to dust, prolonged water immersion, and steam jet cleaning. With temperature compensation from 14°F to 122°F and a 150% safe overload capacity, the 651JS is designed to provide reliable and precise performance across a wide variety of demanding applications. This load cell stands as the highest accuracy solution available in the market for trade-certified weighing needs.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 50kg, 75kg, 200kg, 400kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68/69K
- OIML MAA C9, Y=18 000 certified from 10kg-100kg
- OIML MAA C4, Y=26 000 certified from 101kg-500kg
Available Options: 50kg, 75kg, 200kg & 400kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 651JS Load Cell Specifications
| Rated Capacity | 50kg, 75kg, 200kg, 400kg |
| Reference Max. Platform Size | 600mm x 600mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.03% |
| Hysteresis Error | < ± 0.02% |
| Creep in 30 minutes | < ± 0.03% |
| Input Resistance | 1100Ω ± 50Ω |
| Output Resistance | 1000Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Nominal Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68/69K |
Technical Documents
 |
651JS Stainless Steel Single Point Load Cell Datasheet |
 |
OIML Certificate of Conformity NTEP Certificate of Conformity |
3D Drawing
 |
651JS-(50-400)kg |
Interchangeable Cross Reference
ANYLOAD 651JS Equivalents
| Equivalent Model | ANYLOAD Model |
| 651JS-50kg | 108JA-50kg* |
| 651JS-75kg | 108JA-75kg* |
| 651JS-75kg | 108JA-LE75kg* |
| 651JS-200kg | 108JA-SE200kg* |
| 651JS-400kg | 108JA-SE400kg* |
* Most dimensions are the same, except overall height (H on the drawing): 651JS all capacities at 49mm(1.9inch), while 108JA-50kg & 108JA-75kg 25mm(0.98inch), 108JA-LE75kg, 108JA-SE200kg, 108JA-SE400kg 40mm(1.57inch).
