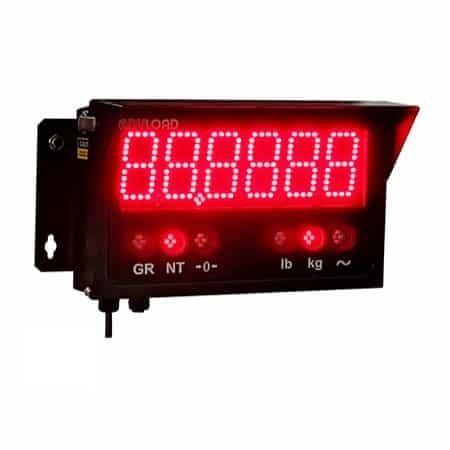

ANYLOAD 808CH-WL Remote Display
The ANYLOAD 808CH-WL offers a wireless output option to the 808CH compact remote display. It boasts versatility, ruggedness, a weatherproof (IP65) chassis, and easy installation.
The 808CH-WL display features a six-digit high-intensity LED (2.5″ / 65 mm tall) with a wide viewing angle. It offers seamless compatibility with other indicators and weighing instruments with its auto-learn baud rate and auto-learn protocol features. This wireless option includes the WL900 Transmitter/Receiver.
$2,970.00
| Quantity | Price |
|---|---|
| 1 - 9 | $2,970.00 |
| 10 - 24 | $2,821.50 |
| 25 - 49 | $2,732.40 |
| 50 - 99 | $2,643.30 |
| 100 + | $2,524.50 |
ANYLOAD 808CH-WL Wireless Compact Remote Display Features
The ANYLOAD 808CH-WL are the newest generation industrial remote displays designed to be versatile, rugged, durable, and easy to install:
This product is certified to meet the European Union’s CE safety standards.
Great Visibility:
- Single-row discrete LED
- 6 digits, 2.5” height, 7 segment
- Wide viewing 120° angle
- Two levels of brightness adjustment
- Mirrored digit display
- Grey front safety glass
- Onboard diagnostic lights for troubleshooting
Auto-Learn Technology:
- Automatically detect indicator string protocols
- Automatically set communication baud rates
Multiport Communication:
- Input: Independent RS232, RS422, RS485, 20mA Current Loop (active or passive)
- Output: Echo out and addressable multi-display configuration
- Switch inputs and relay output to control traffic lights
- Lightning ESD protection for communication lines
Service Friendly:
- Modular Design
- External membrane keypad
- Hinged front cover
- Onboard diagnostic lights for troubleshooting
- 100~240VAC internal encapsulated UL/CSA power supply
- Wireless output via the included WL900 Transmitter/Receiver
Enclosure/Exterior:
- Weatherproof powder-coated mild steel enclosure
- Visor to protect from the sun or rain shade
- Wall mounting on the back
- GORE breather vent
Power:
- 100~240VAC internal encapsulated UL/CSA power supply
Contact us with any design or product-related questions before purchase.
Specifications
ANYLOAD 808CH-WL Specifications
| Display Digits | 2.5” (65mm) Height, 6 digits, 7 segments |
| Display Visibility | Max 25m(100ft) @1500mcd, 120 angle |
| Micro Controller | 50MHZ ARM Cortex M® processor |
| Status Indication | 4 Annunciators for GR, NT, lb, and kg (some versions in kg and t), and 2 annunciators for motion and zero |
| Decimal Point | 2 Decimal point places with choice of dot or comma |
| Membrane Keypad | 4 Keys dome membrane keypad |
| Brightness Control | An ambient light sensor to adjust brightness during the day and night |
| Communication Ports | 3 Independent serial ports for RS232, RS422/RS485, and 20mA current loop |
| Communication Baud | Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate |
| String Protocol | Auto learn to detect string protocol and parse incoming string |
| Echo Port | 2 Independent serial ports for RS232 and RS422/RS485 |
| Printer Port | 1 Independent transmit port for non-legal trade printing applications |
| Digital Input/Output | 2 Dry contact switches and 1 form C relay |
| Main Enclosure | Powder-coated mild steel weather-proof (IP65) |
| Power Supply | 100-240VAC, 1.1A, 50/60Hz UL Approved |
| Operating Temperature | -40°F to 120°F (-40°C to 50°C) |
| Operating Humidity | 20%RH to 90%RH |
| Enclosure Ventilation | GORE ® breather vent to avoid condensation |
| Physical Dimensions | 296mm X 191mm X 67mm (11.65” X 7.52” X 2.64”) or 353mm X 191mm X 116.8mm (13.90” X 7.52” X 4.60”) w/ mounting brackets & canopy included |
| Total Weight | 6.4 kg (14 lb), Approximately |
| Industry Approvals | UL/CSA Approved class II power supply |
| Certificate of Conformity | CE Marking, EMC, and LVD Directives |
