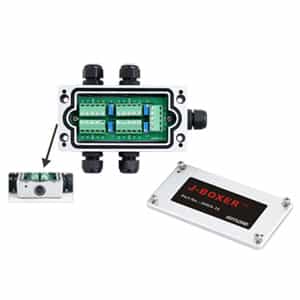

ANYLOAD J04EA-16 and J04SA-16 J-BOXER Junction Box

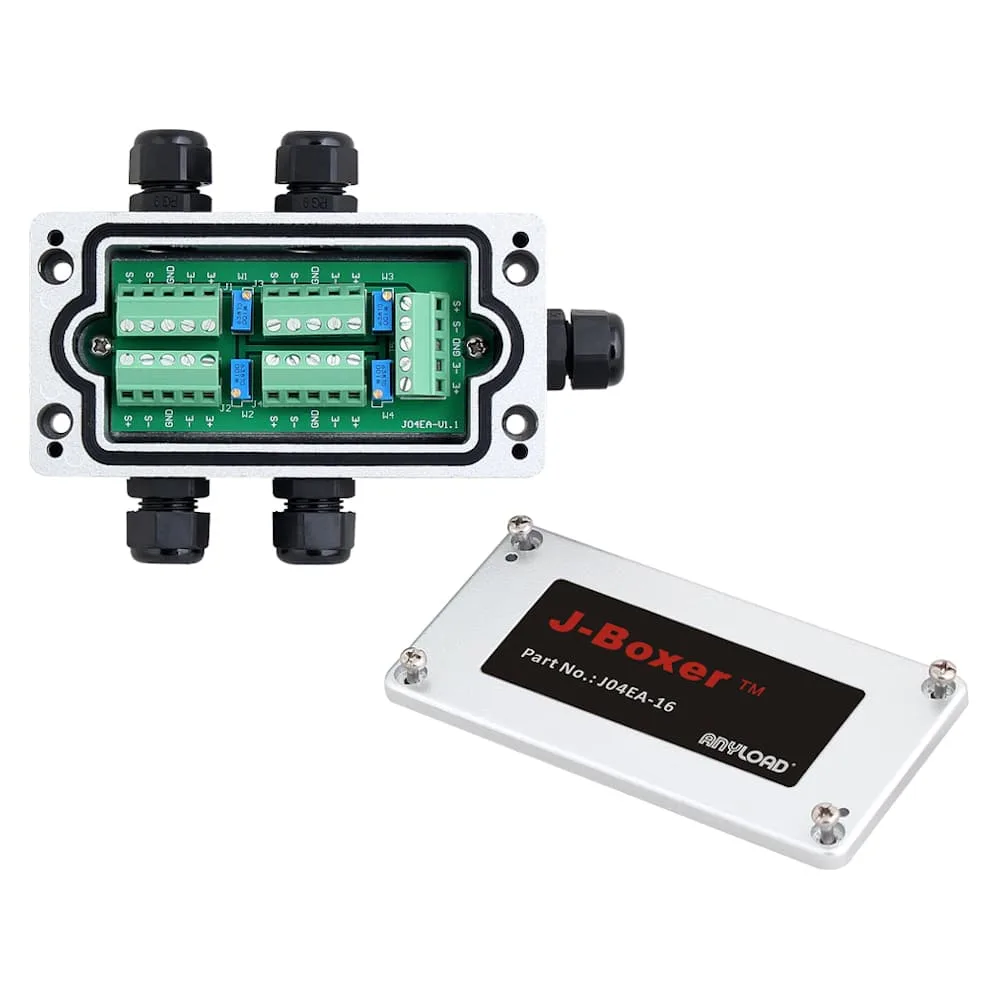

The ANYLOAD J04EA-16 and J04SA-16 junction boxes are designed to combine signals from 2 to 4 parallel load cells into a single output. They feature independent potentiometers for either excitation trim or signal trim, ensuring precise multi-cell balance adjustment. Housed in a durable aluminum enclosure with IP67 protection, they feature independent potentiometers for fine-tuning, making them reliable and accurate solutions for load cell systems.
| Quantity | Price |
|---|---|
| 1 - 9 | $90.00 |
| 10 - 24 | $85.50 |
| 25 - 49 | $82.80 |
| 50 - 99 | $80.10 |
| 100 + | $76.50 |

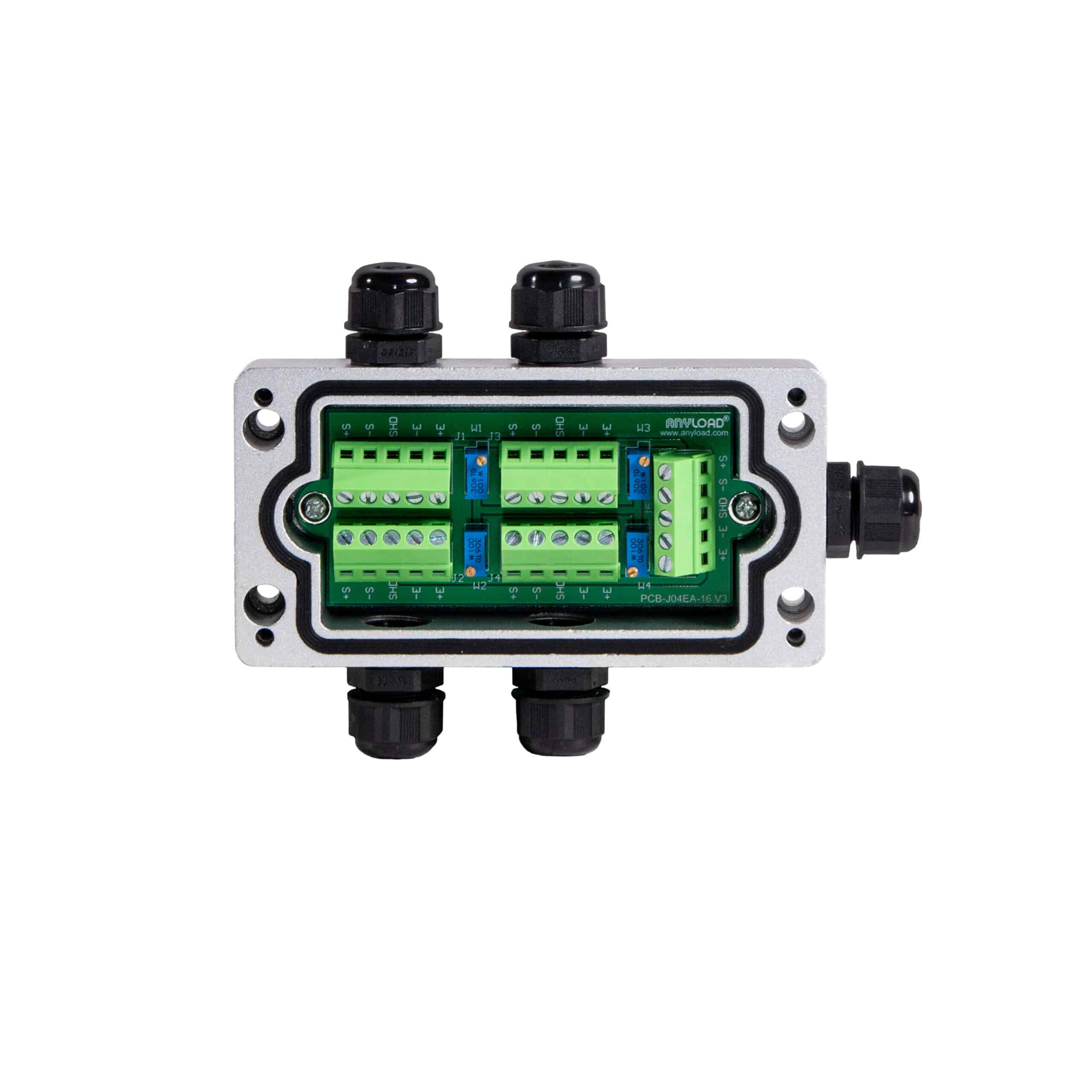

ANYLOAD J04EA-16 and J04SA-16 Features
The ANYLOAD J04EA-16 and J04SA-16 junction and summing boxes are engineered to accept inputs from two to four parallel load cells, combining these signals into a single output for precise multi-cell balance adjustment. These junction boxes feature independent potentiometers for either excitation trim or signal trim, allowing for fine-tuned accuracy in your weighing systems. Housed in a durable aluminum cast enclosure with a GORE breather vent, the J04EA-16 and J04SA-16 are built to withstand harsh environments, boasting an IP67 ingress protection rating. Designed for reliability and precision, these junction boxes are essential for any multi-cell load cell setup.
- Compact size with strong aluminum casting

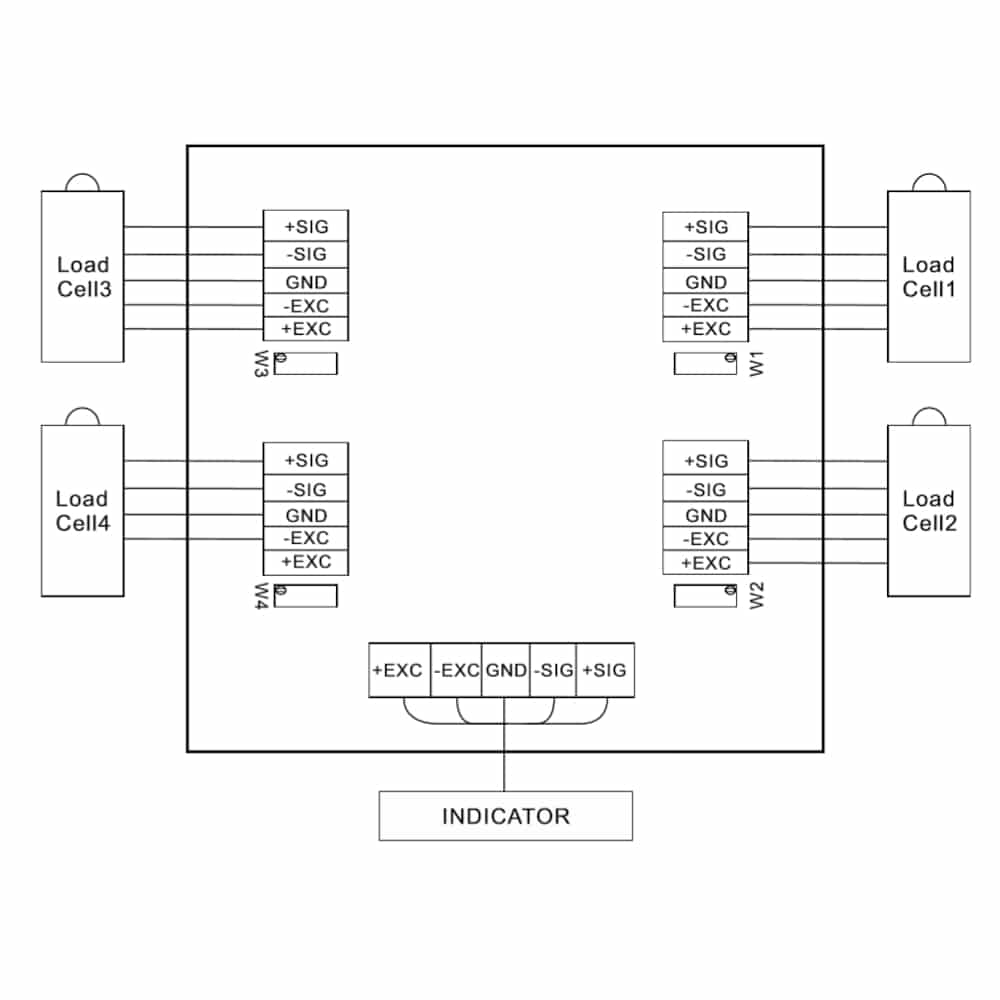

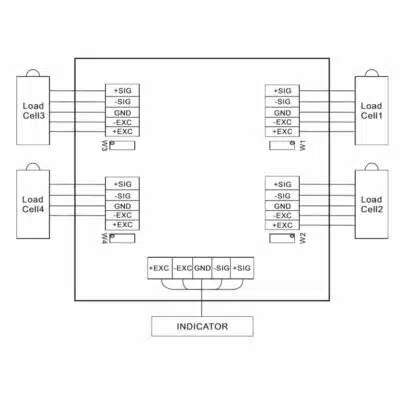

- Number of cells: 2-4 single cells, only an even number of load cells ( eg. 2, 4)
- Trimming Options: Individual cell with excitation or signal trim

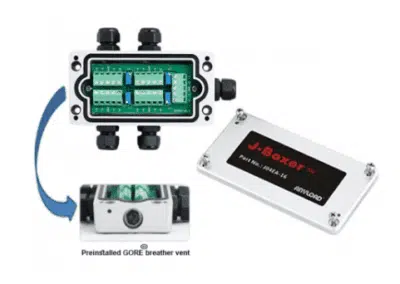

- Preinstalled GORE breather vent
- Equipped with independent potentiometers
- Captive stainless steel screws (attached to the cover)
- IP Rating: IP67
Available Options: J04EA-16, J04SA-16, J04EA-16 Mother Board Only, J04SA-16 Mother Board Only
Contact us with any questions about load cell interfacing.
Specifications
ANYLOAD J04EA-16 and J04SA-16 Specifications
| Number of cells | 2-4 single cells |
| Input Cable Fittings | PG9: 4mm-8mm diameter cable |
| Output Cable Fittings | PG9: 4mm-8mm diameter cable |
| Trimming | Individual cell with excitation or signal trim |
| Enclosure Material | Aluminum Casting |
| IP Rating | IP67 |
Trimming Range
| Load Cell Resistance | Signal Trim | Excitation Trim |
|---|---|---|
| 350Ω | 3.6% of output | 2.3% of output |
| 700Ω | 6.3% of output | 1.3% of output |
| 1000Ω | 7.0% of output | 1.0% of output |
Technical Documents
 |
J04EA-16 and J04SA-16 Load Cell Junction Box |
 |
J04EA-16 Manual Version 1.3 J04SA-16 Manual Version 1.2 |
