ANYLOAD MK4-363TSM1 Weigh Module Kit
The ANYLOAD MK4-563YHM4 Kit is a one-stop shop for tank and hopper weighing. Includes 4 single-ended beam alloy steel load cells, 4 compatible alloy steel modules, one junction box, and 20m shielded cable. See the MK4-102EHM2 (alloy steel, double-ended shear beam) and MK4-563RSM5 (stainless steel, single-ended shear beam) kits for other capacity options.
| Quantity | Price |
|---|---|
| 1 - 9 | $5,056.00 |
| 10 - 24 | $4,803.20 |
| 25 - 49 | $4,651.52 |
| 50 - 99 | $4,499.84 |
| 100 + | $4,297.60 |
ANYLOAD MK4-363TSM1 Features
Features:
- Low profile
- Combined load cell and weigh mount
- Side load and uplift protection up to 50% of rated capacity
- Optional top plate available with threaded top holes for symmetrical mounting
- 17-4PH stainless steel construction (IP68/IP69K hermetic seal)

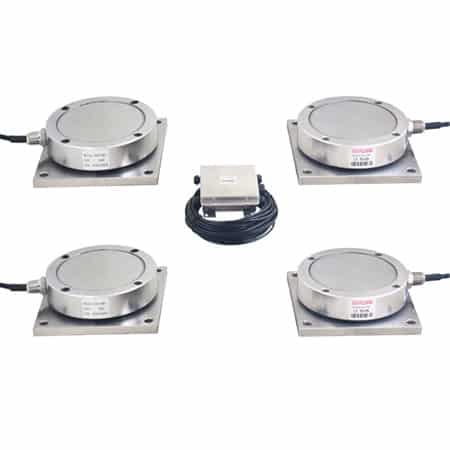

Complete Set Includes:
- (4 pcs) Four sets 363TSM1 ThinWeigh Weigh Modules
- (1 pcs) One J04SS water-resistant junction box
- (1 roll) 65ft (20m) cable, 4-wire PVC cable with both copper braid & foil shielding (CB4-5.1-20m)
Available Options: 2.5Klb, 5Klb & 10Klb.
Please contact us with any product-related questions.
Part Numbers
MK4-363TSM1 Load Cell Kit Options
| MK4 Load Cell Capacity | Part No. | Shipping Weight (kg / lb) Approx. |
|---|---|---|
| 2.5Klb | MK4-363TSM1-2.5Klb-S | 9.3kg / 20.5lb |
| 5Klb | MK4-363TSM1-5Klb-S | 14.1kg / 31.1lb |
| 10Klb | MK4-363TSM1-10Klb-S | 14.1kg / 31.1lb |
| Rated Capacity | Part No. | Shipping Weight (kg) Approx. |
|---|---|---|
| 1Klb | 363TSM1-1Klb | – |
| 2.5Klb | 363TSM1-2.5Klb | 2.0kg |
| 5Klb | 363TSM1-5Klb | 3.2kg |
| 10Klb | 363TSM1-10Klb | 3.2kg |
| 25Klb | 363TSM1-25Klb | 7.4kg |
| 50Klb | 363TSM1-50Klb | 7.4kg |
| 100Klb | 363TSM1-100Klb | 27.2kg |
| 200Klb | 363TSM1-200Klb | 43.0kg |
Technical Documents
 |
ANYLOAD MK4-363TSM1 Datasheet |
|
ANYLOAD MK4-363TSM1 Product Brochure |
