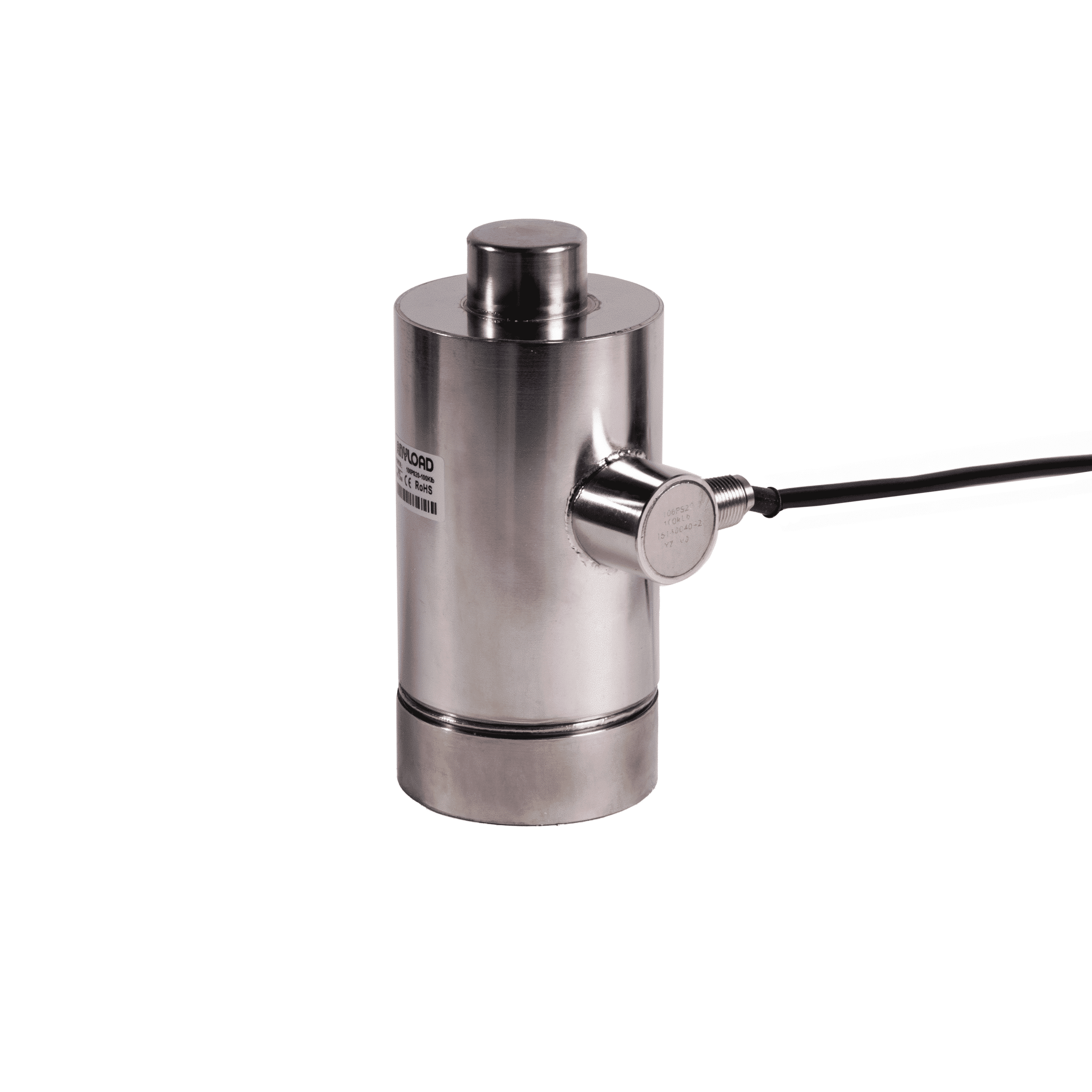

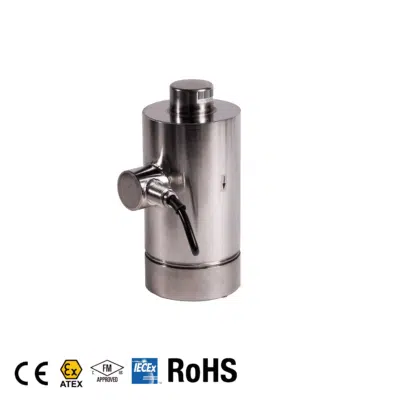

ANYLOAD 106PS20 Stainless Steel Canister Load Cell
The ANYLOAD 106PS20 canister load cell is 17-4PH stainless steel and is available in 100Klb capacity. With an IP68 protection rating and welded seal, the 106PS20 load cell is ideal for high-compression industrial weighing applications. This product adheres to leading international safety requirements.
Limited stock – please contact us before ordering.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,682.00 |
| 10 - 24 | $1,597.90 |
| 25 - 49 | $1,547.44 |
| 50 - 99 | $1,496.98 |
| 100 + | $1,429.70 |
ANYLOAD 106PS20 Features
The 106PS20 canister load cell is a robust stainless-steel compression sensor built for high-capacity industrial weighing applications. With its hermetically welded IP68 construction, it offers excellent protection against moisture and harsh environments while maintaining stable and precise measurements. Designed with high overload protection and certified accuracy, it delivers dependable performance for truck scales, tank weighing, and other heavy-duty weighing systems.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 50Klb, 100Klb
- Full-Scale Output: 2mV/V ± 0.1%
- Safe Overload – 150%
- Breaking Overload – 300%
- IP Rating: IP68
- CE and RoHS-certified
- ATEX, FM, IECEx available upon request
Available Option: 100Klb.
Please contact us with any product-related questions.
Specifications
ANYLOAD 106PS20 Load Cell Specifications
| Rated Capacity | 50Klb, 100Klb |
| Full-Scale Output | 2mV/V ± 0.1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 350Ω ± 3.5Ω |
| Output Resistance | 350Ω ± 3.5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0014% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0030% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
 |
ANYLOAD 106PS20 Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 106PS20 Interchangeable Cross Reference
| Manufacturer | Equivalent Model |
| Coti Global | CG-92 |
| Vishay Revere Transducers | 92 |
