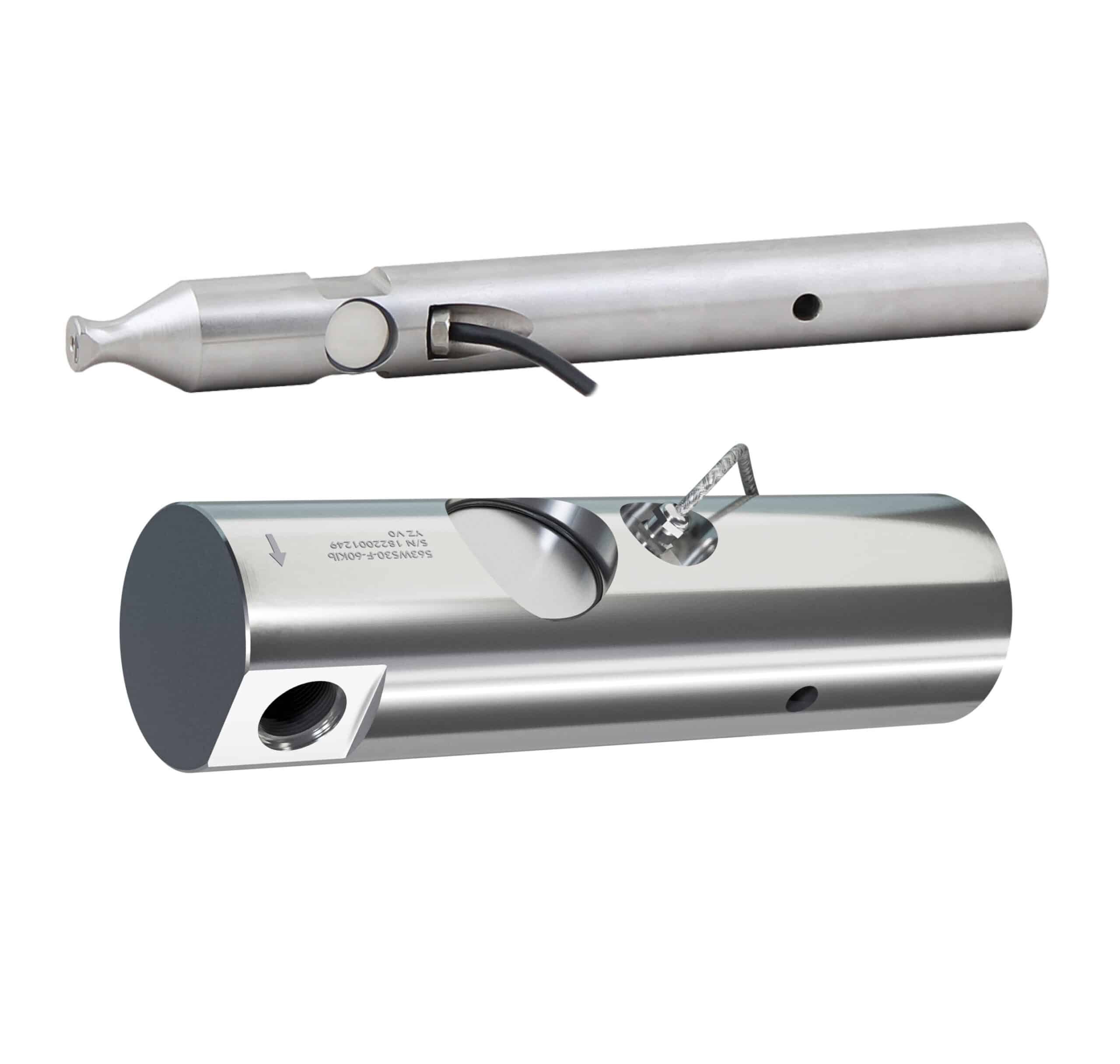

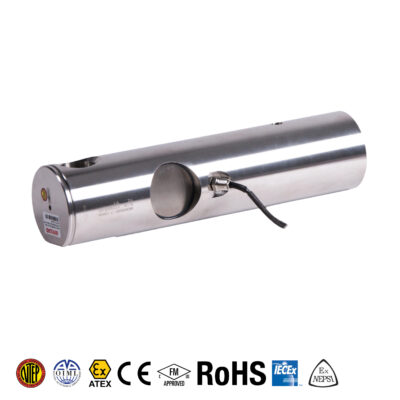

ANYLOAD 563WS-563WS30 Stainless Steel Single-Ended Beam Load Cell
The ANYLOAD 563WS and ANYLOAD 563WS30 Stainless Steel Single-Ended Shear Beam Load Cells deliver reliable and accurate weighing for a broad variety of industrial and technical weighing applications. The 563WS comes in 1.25Klb-25Klb rated capacities, while the 563WS30 is available in 37.5Klb and 50Klb rated capacities. Both feature 2Cr13 stainless steel construction and an IP rating of IP67.
| Quantity | Price |
|---|---|
| 1 - 9 | $276.00 |
| 10 - 24 | $262.20 |
| 25 - 49 | $253.92 |
| 50 - 99 | $245.64 |
| 100 + | $234.60 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563WS & 563WS30 Features
The 563WS & 563WS30 are high-quality stainless-steel single-ended beam load cells designed for dependable and versatile weighing in a variety of industrial applications. Engineered to deliver consistent performance, it supports a wide range of capacities while maintaining excellent measurement accuracy. Its robust construction provides strong overload protection, helping ensure durability and long-term reliability. With IP67 environmental sealing, the 563WS is well-suited for harsh and demanding environments where dust and moisture resistance are essential. The load cell’s precision design allows for stable and repeatable weighing results in daily operations. Combining strength, accuracy, and reliability, the 563WS is an ideal solution for modern industrial weighing systems.
- Material: 2Cr13 Stainless Steel
- Rated Capacities: 1.25Klb, 2.5Klb, 5Klb, 10Klb, 25Klb, 37.5Klb, 50Klb, 60Klb, 75Klb
- Full Scale Output: 2mV/V ± 1% (1.25Klb-25Klb) or 3mV/V ± 1% (37.5Klb and 50Klb)
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP: 563WS30: 10Klb-75Klb: up to NTEP 1:10 000 Class III / III L, Multiple Cell
- OIML: 563WS30: 25Klb-75Klb: up to OIML MAA C6, Y=25 000
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
- Interchangeable with Coti Global (CG-WB-SS), Avery Weigh-Tronix, Weigh Bar ( 27173, 50104, 55829, AWT27-500080, Easi-Post etc), Rice Lake (RL75000 SS, RL32011WB-L)
- NTEP, CE, RoHS, and Ex Certified
Available Options: 1.25Klb-YZ, 2.5Klb-YZ, 5Klb-YZ, 10Klb-YZ, 25Klb-YZ, 37.5Klb-YZ & 50Klb-YZ.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563WS and 563WS30 Load Cell General Specifications
| Rated Capacities ≤ 25Klb (563WS) | 1.25Klb, 2.5Klb, 5Klb, 10Klb, 25Klb |
| Rated Capacities ≥ 37.5Klb (563WS30) | 37.5Klb, 50Klb, 60Klb, 75Klb |
| Full Scale Output ≤ 25Klb (563WS) | 2mV/V ± 1% |
| Full Scale Output ≥ 37.5Klb (563WS30) | 3mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity 563WS;563WS30(CG) | <± 0.023% |
| Non-linearity 563WS30-F | <± 0.02% |
| Repeatability 563WS;563WS30(CG) | <± 0.023% |
| Repeatability 563WS30-F | <± 0.02% |
| Hysteresis Error 563WS;563WS30(CG) | <± 0.023% |
| Hysteresis Error 563WS30-F | <± 0.03% |
| Creep in 30 minutes 563WS;563WS30(CG) | <± 0.030% |
| Creep in 30 minutes 563WS30-F | <± 0.03% |
| Input Resistance 563WS;563WS30(CG) | 350Ω ± 7Ω |
| Input Resistance 563WS30-F | 350Ω ± 25Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | 2Ω (50V DC) GΩ |
| Temperature Effect on Sensitivity | ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
Technical Documents
 |
563WS/WS30 Single-Ended Beam Load Cell Datasheet |
 |
NTEP Certificate of Conformance CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
 |
563WS-1.25Klb |
|
563WS-2.5Klb |
|
563WS-5Klb |
|
563WS-10Klb |
|
563WS-25Klb |
|
563WS30-37.5Klb |
|
563WS30-50Klb |
|
563WS-CG-25Klb |
|
563WS30-CG-37.5Klb |
Interchangeable Cross Reference
ANYLOAD 563WS and 563WS30 Equivalents
| ANYLOAD | Avery Weigh-Tronix | Coti-Global | Rice Lake | Rice Lake |
|---|---|---|---|---|
| 563WS-1.25Klb-YZ | Weigh Bar | CG-WB-SS-1.25Klb | RL75000 SS-1.25Klb | RL32011WB-L-1.25Klb |
| 563WS-2.5Klb-YZ | Weigh Bar | CG-WB-SS-2.5Klb | RL75000 SS-2.5Klb | RL32011WB-L-2.5Klb |
| 563WS-5Klb-YZ | Weigh Bar | CG-WB-SS-5Klb | RL75000 SS-5Klb | RL32011WB-L-5Klb |
| 563WS-10Klb-YZ | Weigh Bar | CG-WB-SS-10Klb | – | RL32011WB-L-10Klb |
| 563WS-25Klb-YZ | Weigh Bar | – | – | – |
| 563WS-25Klb-YZ-CG | – | CG-WB-SS-25Klb | – | – |
| 563WS30-37.5Klb-YZ-CG | – | CG-WB-SS-37.5Klb | – | – |
| 563WS30-37.5Klb-YZ | Weigh Bar | – | – | – |
| 563WS30-50Klb-YZ | Weigh Bar | – | – | – |
| 563WS30-E-50Klb-YZ-RP | 27173 | CG-WB-SS-50Klb-27173 | – | – |
| 563WS30-H-50Klb-YZ-RP | 50104 | CG-WB-SS-50Klb-50104 | – | – |
| 563WS30-F-60Klb-YZ | 55829 | CG-WB-SS-60Klb-55829 | – | – |
