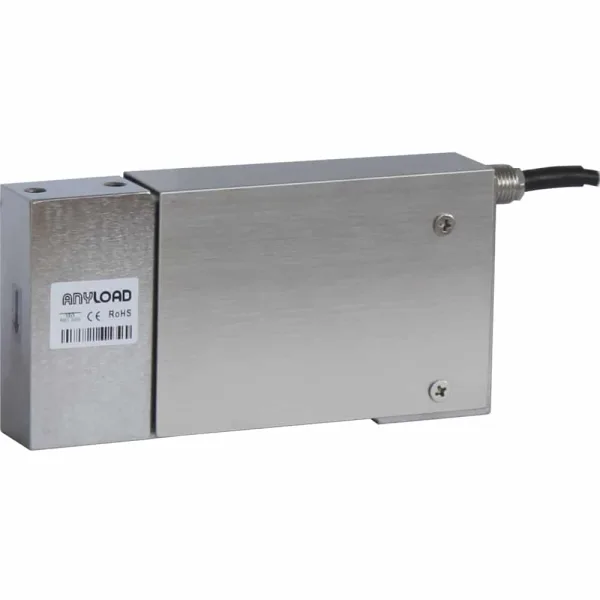

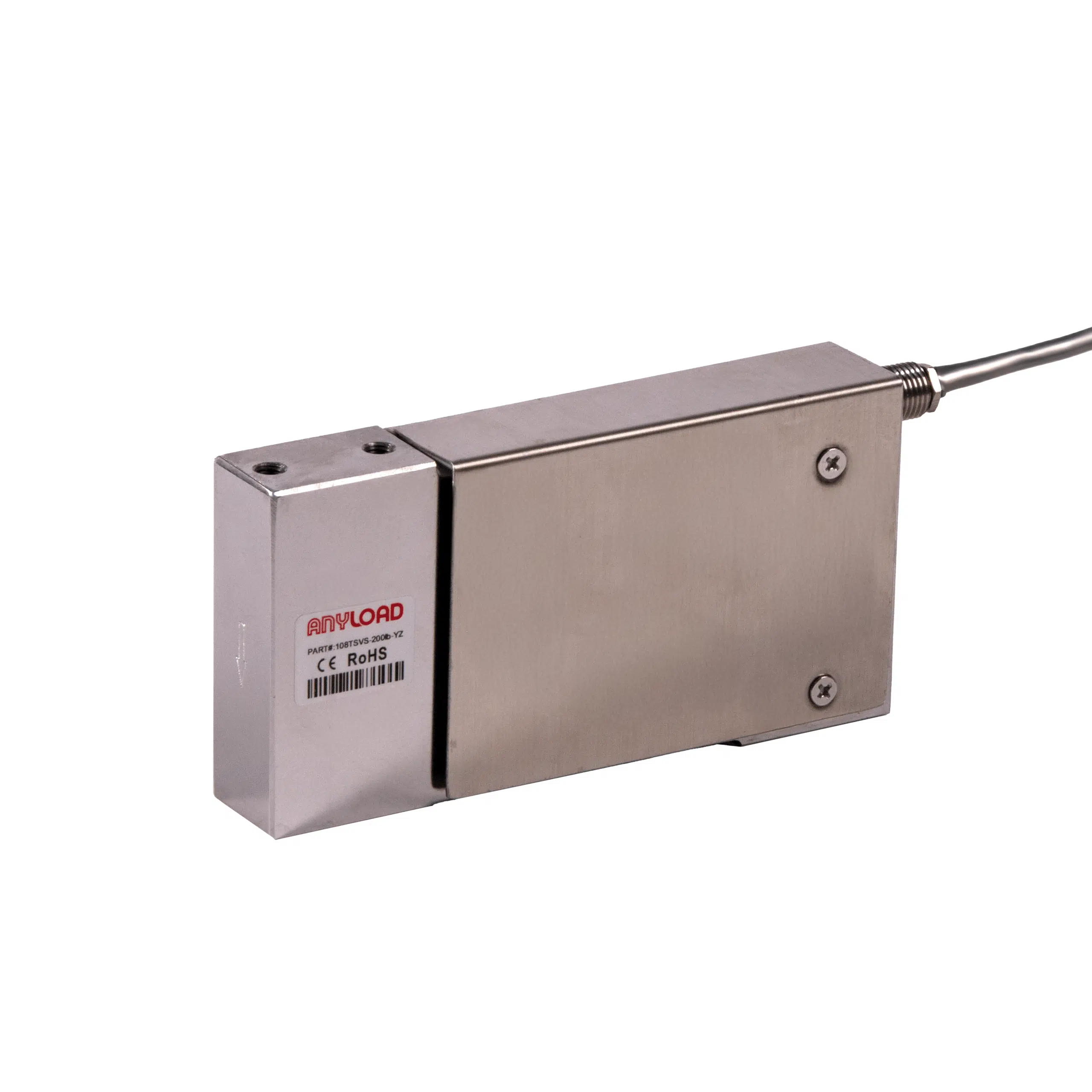

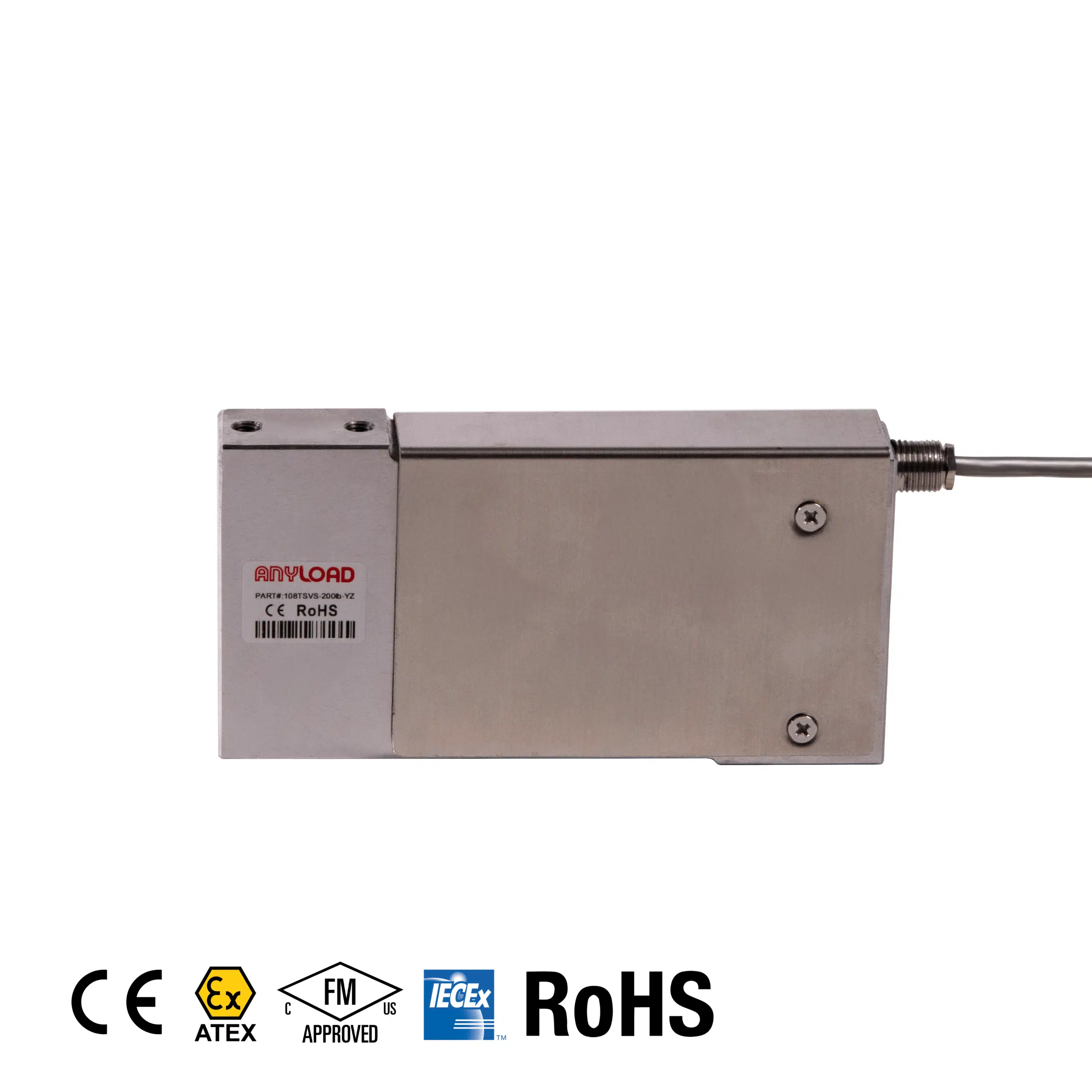

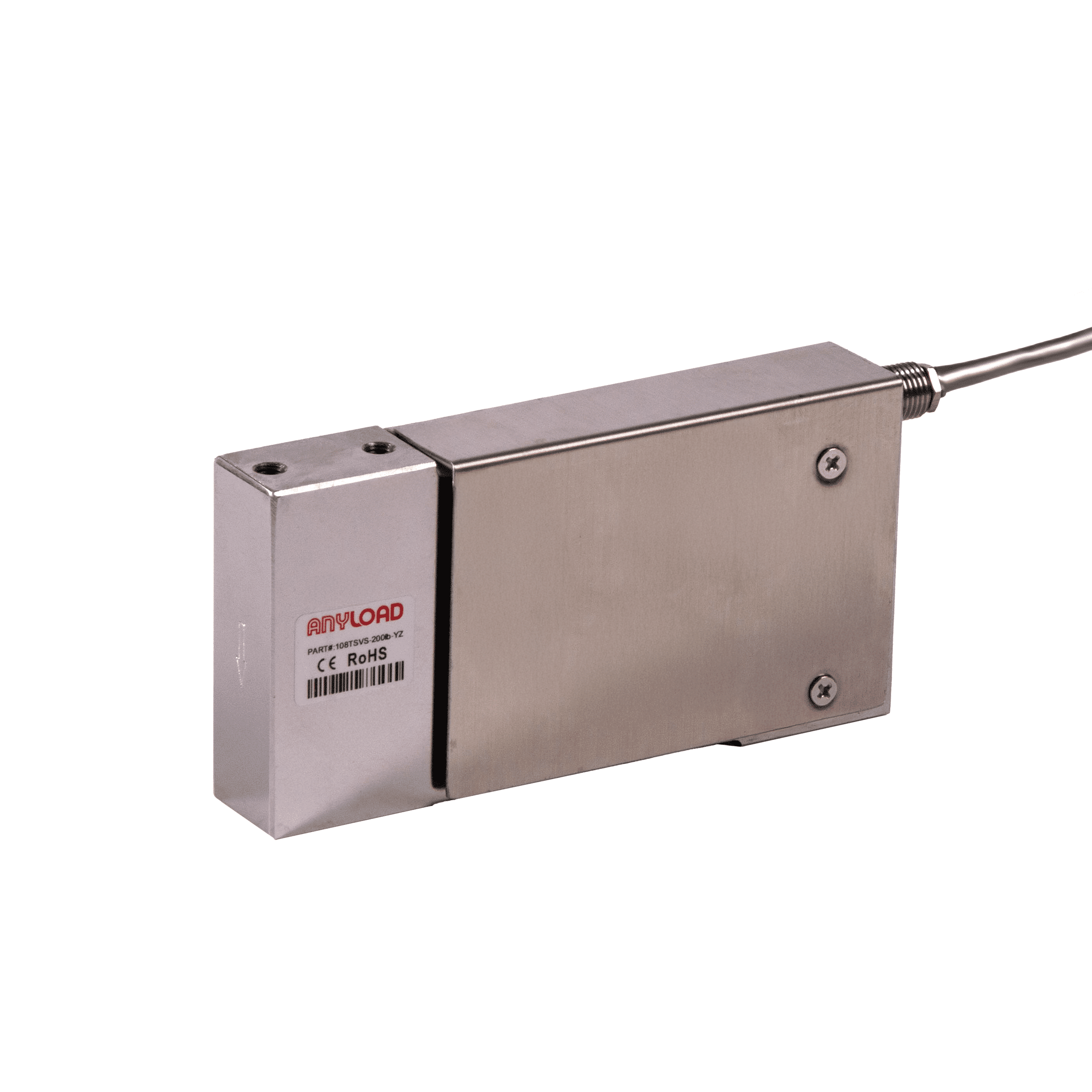

ANYLOAD 108TSVS Stainless Steel Single Point Load Cell
The ANYLOAD 108TSVS Single Point Load Cell is a robust 2Cr13 stainless steel load cell available in capacities from 100lb to 1000lb. With an IP66 rating, it offers excellent resistance to water and corrosion, making it ideal for harsh environments. Its versatile design ensures reliable performance across various applications, including hopper scales, conveyor scales, and process weighing. The 108TSVS is also interchangeable with the Vishay Sensortronics 60048.
Other capacities and configurations may be available—please Contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $438.00 |
| 10 - 24 | $416.10 |
| 25 - 49 | $402.96 |
| 50 - 99 | $389.82 |
| 100 + | $372.30 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108TSVS Features
The ANYLOAD 108TSVS Single Point Load Cell is a robust and reliable weighing solution, crafted from 2Cr13 stainless steel to ensure durability and corrosion resistance. Available in capacities ranging from 100lb to 1000lb, this load cell is rated IP66, making it ideal for use in harsh environments where water and dust protection is crucial. Its versatile design provides excellent performance against eccentric loading, making it suitable for a wide range of applications, including hopper scales, belt scales, conveyor scales, and process weighing. Additionally, the 108TSVS is interchangeable with Vishay Sensortronics 60048, offering seamless integration into existing systems.
- Material: 2Cr13 Stainless Steel
- Rated Capacities: 50lb, 100lb, 200lb, 400lb, 500lb, 1Klb
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS Certified
Available Options: 100lb-YZ, 200lb-YZ, 500lb-YZ & 1Klb-YZ.
Please Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108TSVS Load Cell Specifications
| Rated Capacity | 50lb, 100lb, 200lb, 400lb, 500lb, 1Klb |
| Reference Max. Platform Size <500lb | 500mm x 500mm |
| Reference Max. Platform Size <1000lb | 750mm x 750mm |
| Full-Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.017% |
| Input Resistance | 385Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
Technical Documents
 |
108TSVS Stainless Steel Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
 |
108TSVS-(50-200)lb |
|
108TSVS-(450-500)lb |
|
108TSVS-1000lb |
Interchangeable Cross Reference
ANYLOAD 108TSVS Equivalents
| Manufacturer | Equivalent Model |
| Vishay Sensortronics | 60048 |
| Coti Global | CG-60048 |
