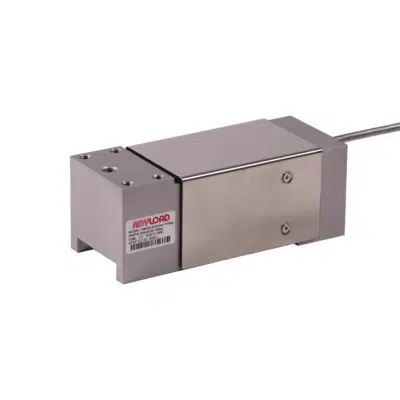

ANYLOAD 108UAUN Aluminum Single Point Load Cell
The ANYLOAD 108UAUN single-point load cell is popular for weighing applications with off-center loads such as retail check-out and postal scales, packaging devices, and airport baggage scales. Available in capacities from 50kg to 1000kg, its aluminum body offers IP67-rated ingress protection. This model is OIML and NTEP certified and meets leading industry safety standards. The ANYLOAD 108UAUN has imperial mounting threads; for SI threading, see the 108UA.
Other capacities and configurations may be available—please Contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $292.00 |
| 10 - 24 | $277.40 |
| 25 - 49 | $268.64 |
| 50 - 99 | $259.88 |
| 100 + | $248.20 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108UAUN Features
The ANYLOAD 108UAUN Single Point Load Cell is a versatile and reliable solution for weighing applications that involve off-center loads, such as retail checkout scales, postal scales, packaging devices, and airport baggage scales. Available in capacities ranging from 50kg to 1000kg, this load cell is constructed with an aluminum body that offers IP67-rated ingress protection, ensuring durability in challenging environments. It is OIML and NTEP certified, meeting stringent industry safety standards for accuracy and reliability. Designed to withstand side loading, the 108UAUN delivers dependable performance in both dynamic and static applications. For installations requiring SI threading, the 108UA model is available.
- Material: Aluminum, Clear Anodized
- Mounting Threads: Imperial
- Rated Capacities: 50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t, 1.5t
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- 30kg-500kg capacities: NTEP 1:5 000 Class III, Single Cell
- 30kg: OIML MAA C6, Y=20 000; 50kg-500kg: OIML MAA C6, Y=29 000
- 635kg-1.5t capacities: NTEP 1:4 000 Class III, Single Cell; OIML MAA C4, Y=4 000
- CE and RoHS Certified
Available Options: 50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 635kg & 1t.
Please Contact us with any product-related or implementation-related questions.
Specifications
108UAUN Load Cell Specifications
| Rated Capacity | 50kg, 100kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t |
| Reference Max. Platform Size | 750mm x 750mm |
| Full-Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 150Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
Technical Documents
 |
108UAUN Aluminum Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
3D Drawing
 |
108UAUN-(50-1000)kg |
|
108BA-(50-75)kg |
|
108BA-(100-150)kg |
Interchangeable Cross Reference
ANYLOAD 108UAUN Equivalents
| Manufacturer | Equivalent Model | Info |
| ANYLOAD | 651BAUN | |
| Artech | 60410 | |
| Coti Global | CG-50 | |
| HBM | PW12B | |
| HBM | PW12 | |
| Rice Lake | RL1250 | |
| Vishay Celtron | LOC | |
| Vishay Revere Transducers | 652 | |
| Vishay Sensortronics | 60060 | |
| Vishay Tedea-Huntleigh | 1250 | |
| Flintec | PCB | Flintec PCB is hermetically sealed with stainless steel construction. |
