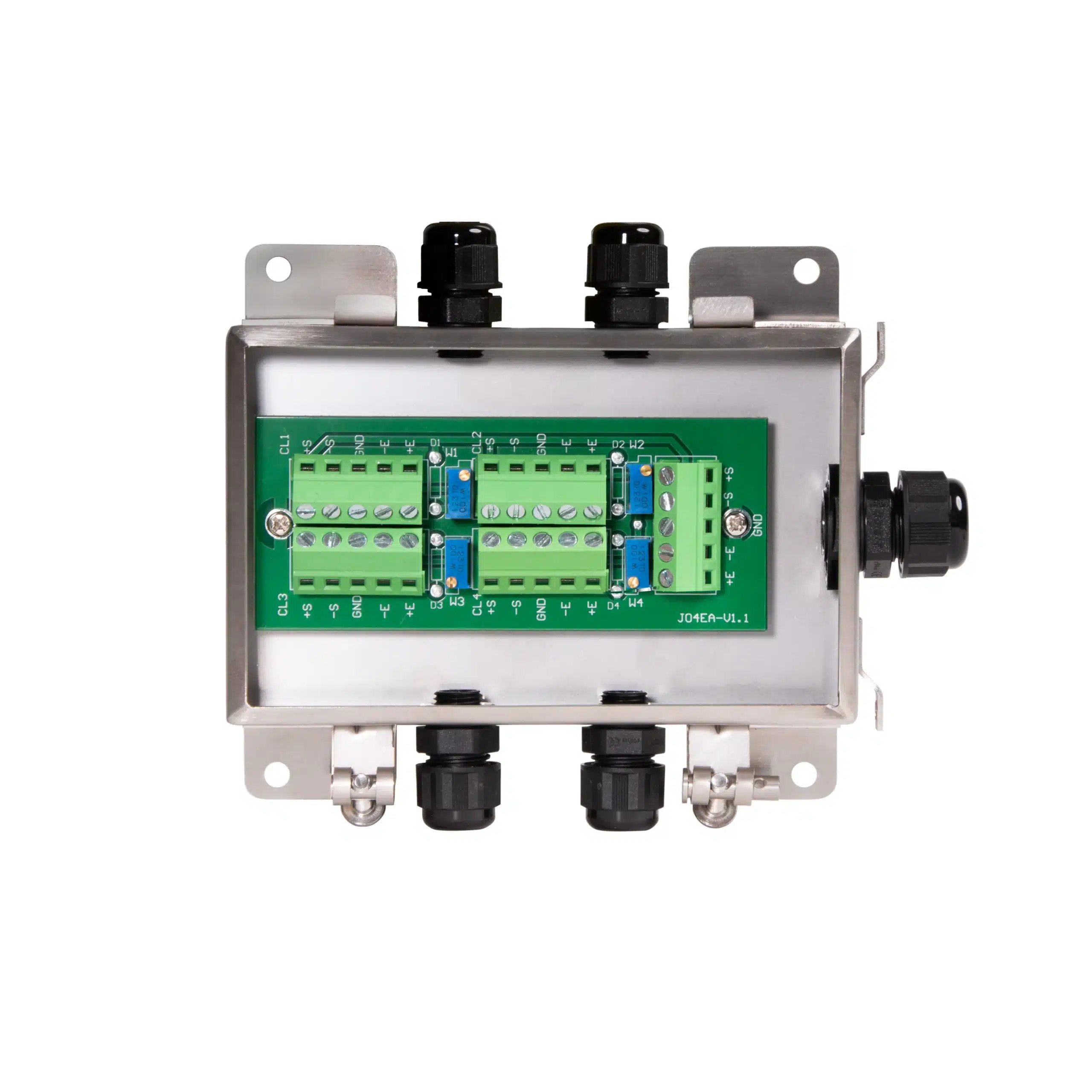

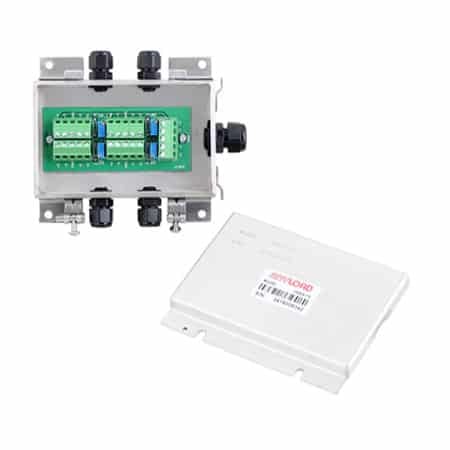

ANYLOAD J04ES-FS and J04SS-FS Stainless Steel Junction Box
The ANYLOAD J04ES-FS and J04SS-FS stainless steel junction boxes combine 2 to 4 load cell inputs into a single output, ensuring accurate multi-cell balance adjustment. Housed in a compact SS304 stainless steel enclosure with an IP65 rating, they feature independent potentiometers for precise excitation or signal trimming. These junction boxes are also easy to install, thanks to ANYLOAD’s patented never-lost and integrated screw design.
| Quantity | Price |
|---|---|
| 1 - 9 | $80.00 |
| 10 - 24 | $76.00 |
| 25 - 49 | $73.60 |
| 50 - 99 | $71.20 |
| 100 + | $68.00 |
ANYLOAD J04ES-FS and J04SS-FS Features
The ANYLOAD J04ES-FS and J04SS-FS junction and summing boxes are designed to accept inputs from 2 to 4 load cells, combining their signals into a single output for precise multi-cell balance adjustment. Housed in a compact SS304 stainless steel enclosure with an IP65 ingress protection rating, these junction boxes are built to withstand harsh environments. They feature independent potentiometers for either excitation trim or signal trim, ensuring accurate load cell performance. Installation is made simple with ANYLOAD’s patented never-lost and integrated screw design, providing both convenience and reliability. The J04ES-FS and J04SS-FS are ideal for applications requiring robust and precise signal summing in a durable, easy-to-install package.
- Enclosure Material: Stainless steel SS304
- Number of cells: 2-4 single cells
- Trimming Options: Individual cell with excitation (J04ES-FS) or signal (J04SS-FS) trim
- Equipped with independent adjustable resistors
- Patented never lost and integrated screw design and stainless steel screws
- IP Rating: IP65
Available Options: J04ES-FS, J04SS-FS, J04ES-FS Mother Board Only, J04SS-FS Mother Board Only
Contact us with any questions about load cell interfacing.
Specifications
ANYLOAD J04ES-FS and J04SS-FS Specifications
| Number of cells | 2-4 single cells |
| Input Cable Fittings | PG7: 3mm-6.5mm diameter cable |
| Output Cable Fittings | PG9: 4mm-8mm diameter cable |
| Trimming | Individual cell with excitation or signal trim |
| Enclosure Material | Stainless Steel SS304 |
| IP Rating: | IP65 |
Trimming Range
ANYLOAD J04ES-FS or J04SS-FS Trimming Range
| Load Cell Resistance | Signal Trim | Excitation Trim |
|---|---|---|
| 350Ω | 3.6% of output | 2.3% of output |
| 700Ω | 6.3% of output | 1.3% of output |
| 1000Ω | 7.0% of output | 1.0% of output |
