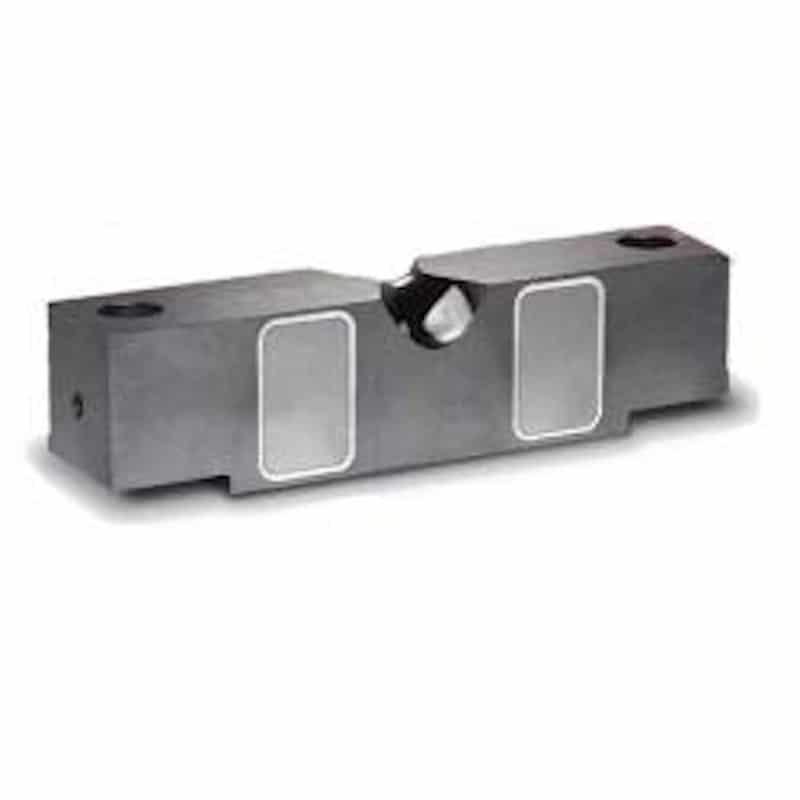

AmCells DST Series Double-Ended Shear Beam – Truck
AmCells DST series double-ended shear beam load cells are alloy steel and come in 10Klb – 125Klb capacities. Their cable is thirty foot in length. This model is ideal for truck scales.
Note that 65Klb through 125Klb-rated options have varying availability, so please contact us to order.
| Quantity | Price |
|---|---|
| 1 - 9 | $800.00 |
| 10 - 24 | $760.00 |
| 25 - 49 | $736.00 |
| 50 - 99 | $712.00 |
| 100 + | $680.00 |
AmCells DST Series Features
Available options: DST-10000lb, DST-15000lb, DST-20000lb, DST-25000lb, DST-40000lb, DST-50000lb, DST-50000lb se, DST-60000lb, DST-60000lb se
Please contact us with any product-related questions.
Specifications
AmCells DST Series Load Cell Specifications
| Rated Output (R.O.) | 3.0 MV/V ± 1% |
| Zero Balance | ± 2% of R.O. |
| Non-linearity | 0.02% of R.O. |
| Hysteresis | 0.02% of R.O. |
| Non-Repeatability | 0.02% of R.O. |
| Creep in 1 hour | 0.02% of Load |
| Insulation | > 5,000MΩ |
| Input Impedance | 700Ω ± 30Ω |
| Output Impedance | 700Ω ± 4Ω |
| Safe Overload | 150% of F.S. |
| Ultimate Overload | 300% of F.S. |
| Compensated Temperature Range | -10 to 40 °C |
| Operating Temperature Range | -40 to 80 °C |
| Temperature Effect on Output | 20 ppm/°C of Load |
| Temperature Effect on Zero | 20 ppm/°C of R.O. |
| Recommended Excitation | 10V DC/AC |
| Maximum Excitation | 20V DC/AC |
Technical Documents
 |
DST Series Datasheet DST Series Table |
Interchangeable Cross Reference
AmCells DST Series Equivalents
| Manufacturer | Equivalent Model |
| Artech Industries Inc. | 70310 |
| Revere | 5300/5303 |
| Sensor | 65058 |
