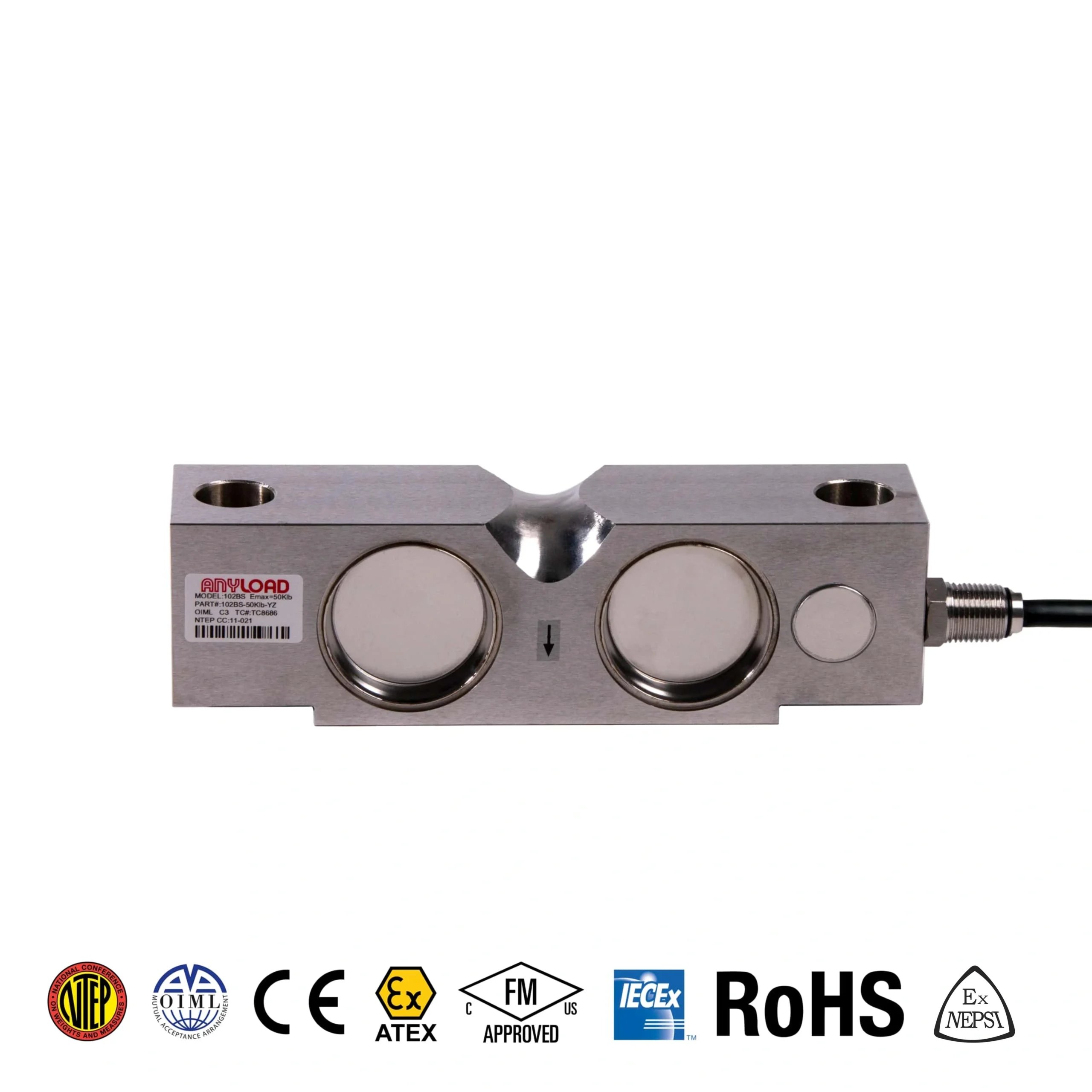

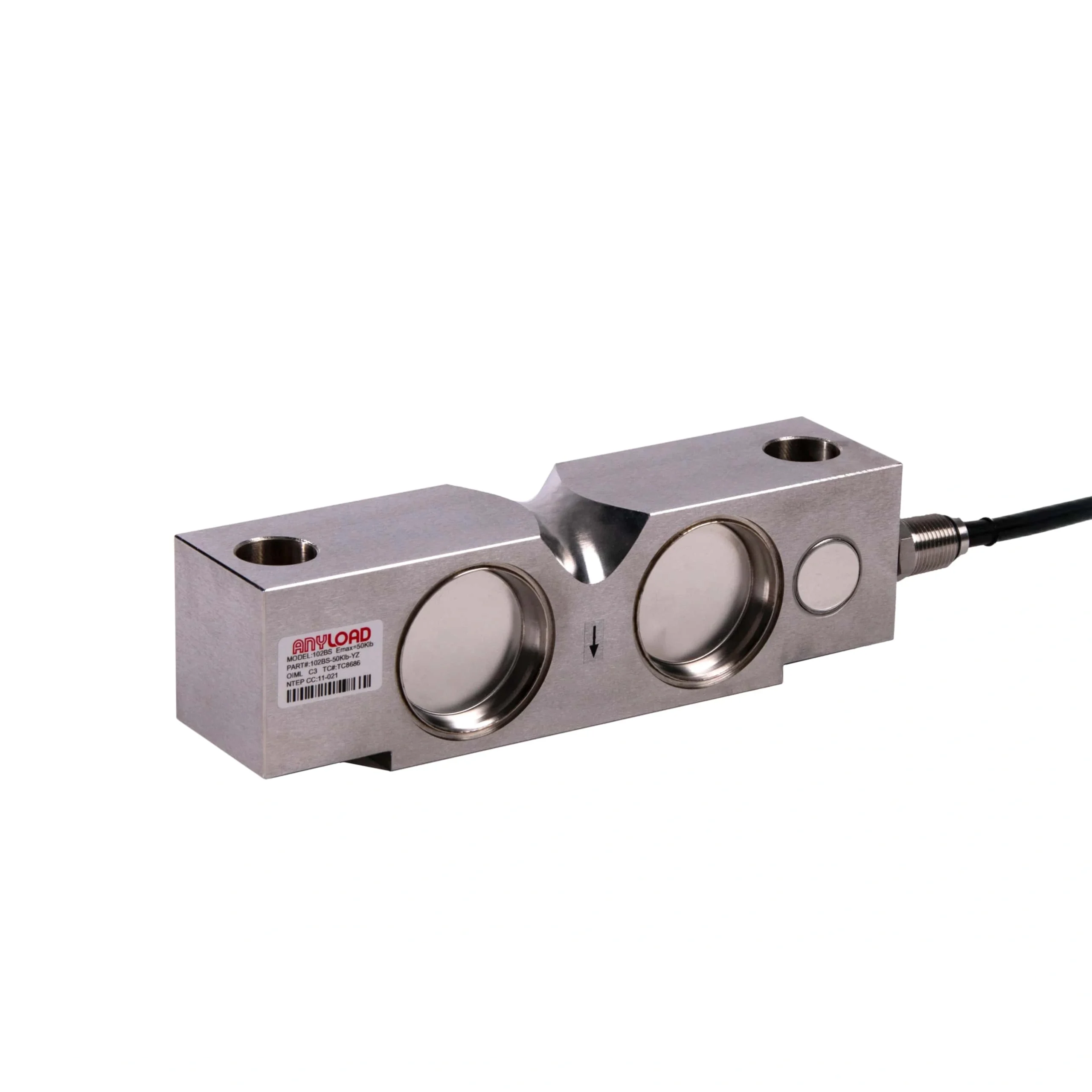

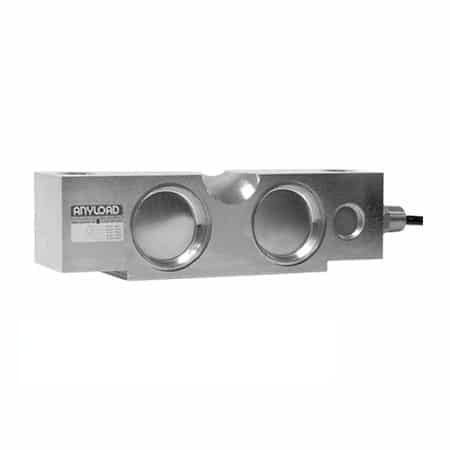

ANYLOAD 102BS Stainless Steel Double-Ended Beam Load Cell
The ANYLOAD 102BS Double-Ended Beam Load Cell is an OIML and NTEP-certified, IP68-rated stainless steel load cell designed for reliable performance in hostile environments. Available in 10Klb to 100Klb capacities, it is ideal for automotive, rail/track, and other heavy-duty applications. Interchangeable with models like the Rice Lake 75060S, Vishay Revere 9303, and Sensortronics 65058S, the 102BS offers superior durability and accuracy in demanding conditions.
Other capacities and configurations are available. Please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $740.00 |
| 10 - 24 | $703.00 |
| 25 - 49 | $680.80 |
| 50 - 99 | $658.60 |
| 100 + | $629.00 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 102BS Features
The ANYLOAD 102BS Double-Ended Beam Load Cell is a highly durable and reliable weighing solution, designed to perform exceptionally well in hostile environments. This OIML and NTEP-certified load cell is constructed from 2Cr13 stainless steel with welded seals, providing IP68 water resistance, and making it ideal for heavy-duty applications such as automotive, rail/track, and other industrial uses. Available in 10Klb to 100Klb rated capacities, the 102BS ensures accurate and consistent compression weighing even under extreme conditions. Additionally, this load cell is interchangeable with industry-standard models like the Rice Lake 75060S, Vishay Revere 9303, and Sensortronics 65058S, offering flexibility and compatibility for various demanding applications.
- Material: 2Cr13 Stainless Steel
- Rated Capacities: 10Klb, 15Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb
- Full-Scale Output: 3 mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- OIML, NTEP, CE, RoHS, and Ex-certified
Available standard Options: 25Klb-YZ, 40Klb-YZ, 50Klb-YZ, 60Klb-YZ & 75Klb-YZ.
Available option with surge protection: 75Klb-YZ-02
Please contact us to check the availability of other capacities.
Specifications
ANYLOAD 102BS Load Cell Specifications
| Rated Capacity | 10Klb, 15Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb |
| Full-Scale Output | 3mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
3D Drawing
 |
102BS-(10-25)klb |
|
102BS-(50-75)klb |
Interchangeable Cross Reference
ANYLOAD 102BS Equivalents
| Manufacturer | Equivalent Model |
| Coti Global | CG-58-SSW |
| Rice Lake | RL75060S |
| Vishay Revere Transducers | 9303 |
| Vishay Sensortronics | 65058S |
