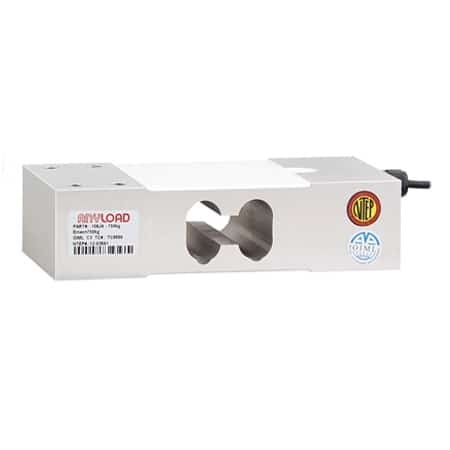

ANYLOAD 108JA-A2 Aluminum Single Point Load Cell
The 108JA A2 is an NTEP/OIML certified, IP66 waterproof single-point load cell offering superior accuracy for compression weighing. Ideal for small platform scales, counting scales, and bench scales, it provides a reliable solution where precision is critical. This A2 model delivers enhanced accuracy compared to the standard 108JA.
Other capacities and configurations may be available—please Contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $404.00 |
| 10 - 24 | $383.80 |
| 25 - 49 | $371.68 |
| 50 - 99 | $359.56 |
| 100 + | $343.40 |
ANYLOAD 108JA-A2 Features
The ANYLOAD 108JA A2 is an NTEP and OIML certified legal-for-trade single-point load cell, designed to offer superior accuracy and performance in demanding weighing applications. With its IP66-rated waterproof construction, the 108JA A2 ensures reliable operation in harsh environments, making it ideal for use in small platform scales, counting scales, bench scales, and other precision weighing systems. This high-accuracy compression load cell is a more advanced version of the standard 108JA, delivering enhanced precision for applications where accuracy is a top priority. Its robust design and industry certifications ensure compliance with legal-for-trade standards, making it a trusted solution across various industries. Available in capacities from 20kg to SE400kg, this versatile load cell meets leading industry safety standards and is well-suited for a variety of precision weighing needs.
- Material: Aluminum
- Rated Capacities: 20kg, 50kg, LE60kg, LE75kg, LE100kg, SE150kg, SE200kg, SE300kg, SE400kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:4 000 Class III, Single Cell certified from 200kg-2t
- OIML C3, Y=4 300 certified from 50kg-400kg
- OIMLMAA C4, Y=4 000 certified from 500kg-2t
- CE and RoHS Certified
Available Options: 20kg, 50kg, LE60kg, LE75kg, LE100kg, SE150kg, SE200kg, SE300kg & SE400kg.
Please Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108JA-A2 Load Cell Specifications
| Rated Capacity | 20kg, 50kg, LE60kg, LE75kg, LE100kg, SE150kg, SE200kg, SE300kg, SE400kg |
| Reference Max. Platform Size = 100kg | 460mm x 600mm |
| Reference Max. Platform Size = 150kg – 400kg | 600mm x 600mm |
| Full-Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.0075% |
| Repeatability | < ± 0.0075% |
| Hysteresis Error | < ± 0.010% |
| Creep in 30 minutes | < ± 0.010% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | –10°C to 40°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
Technical Documents
 |
ANYLOAD 108JA-A2 Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
