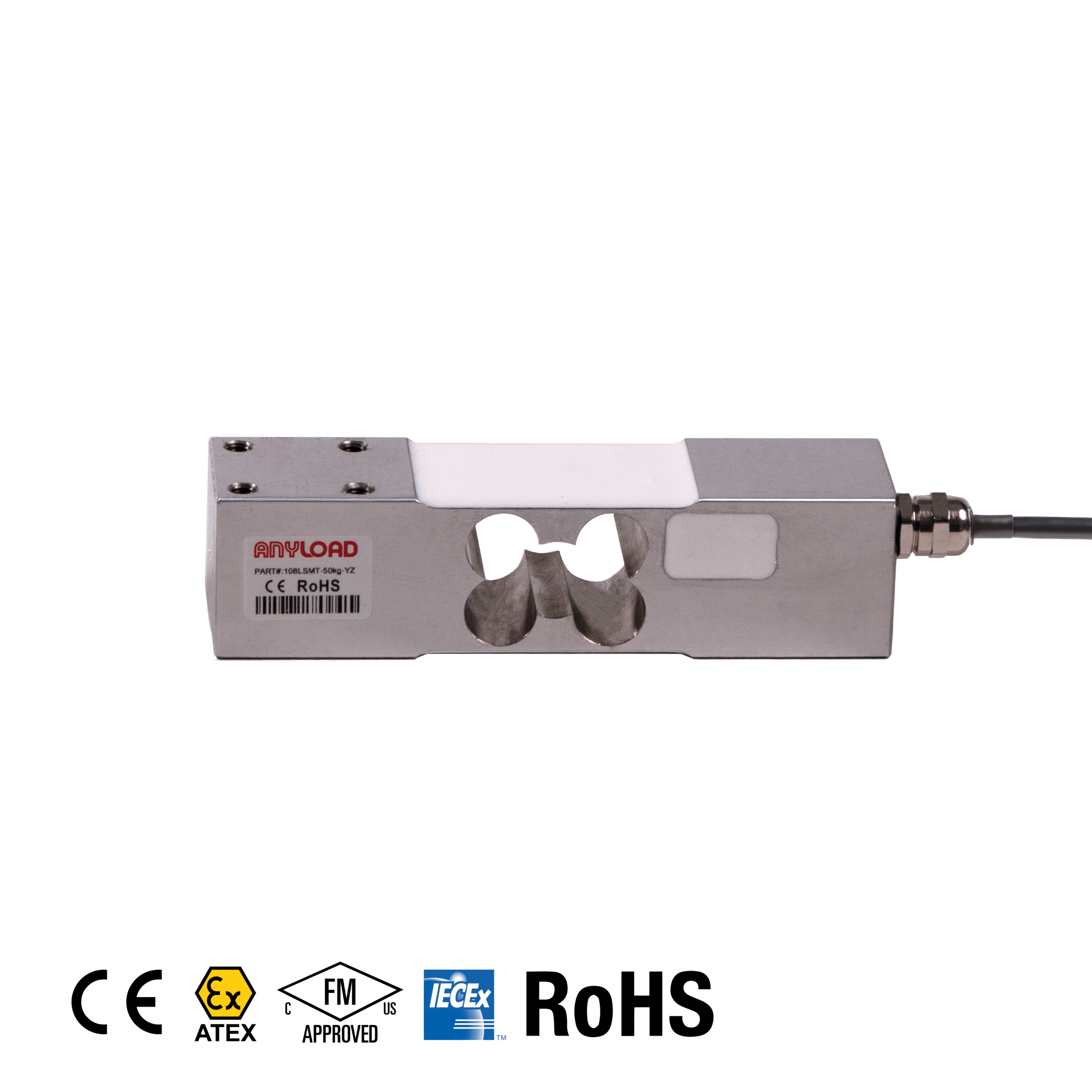

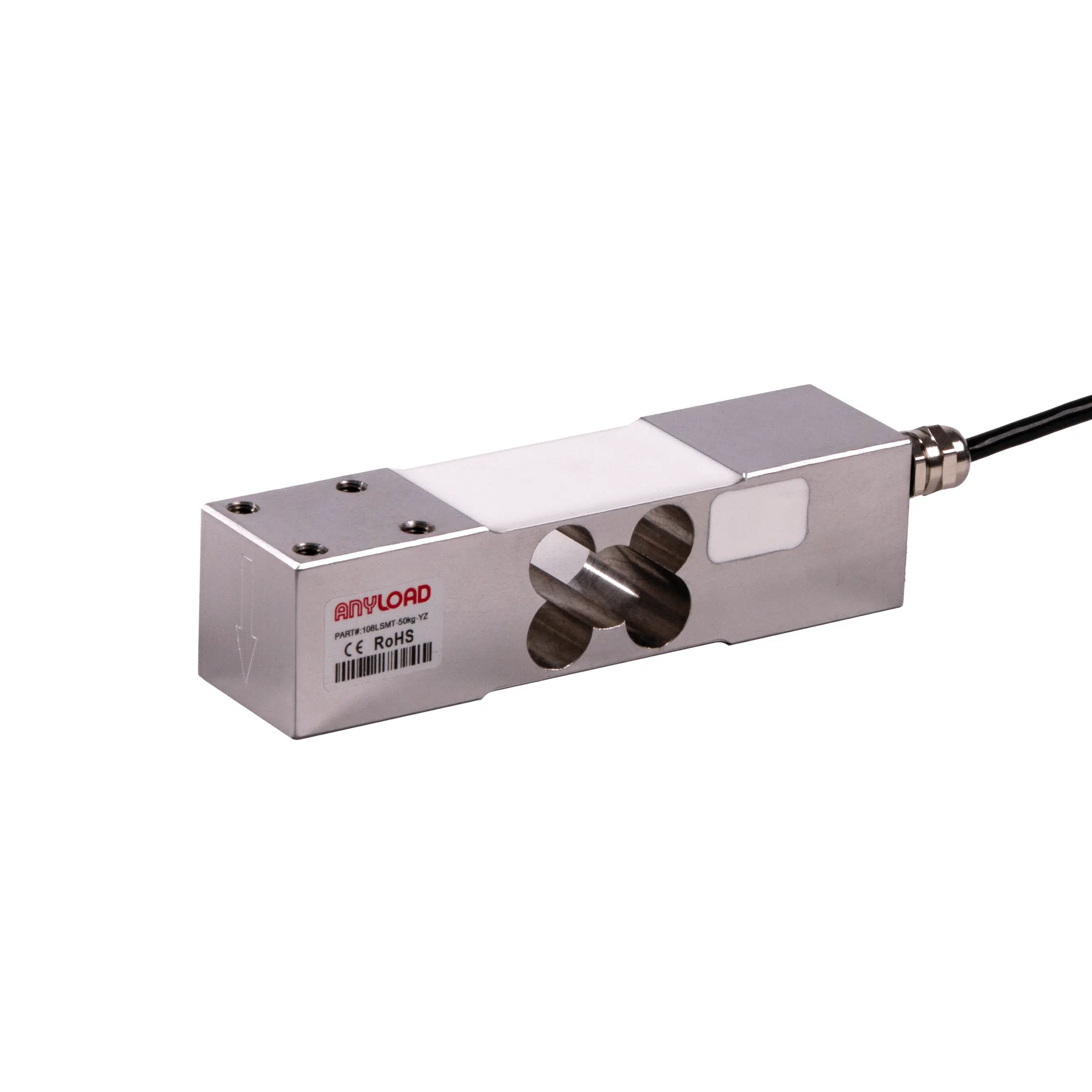

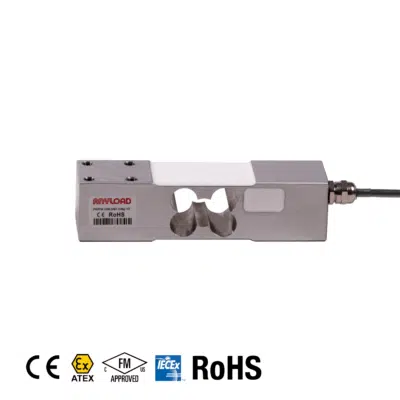

ANYLOAD 108LSMT Stainless Steel Single Point Load Cell
The ANYLOAD 108LSMT Single Point Load Cell has a six-wire cable lending it greater insensitivity to temperature fluctuations. Its environmentally sealed 2Cr13 stainless steel body offers exceptional corrosion resistance with an ingress protection rating of IP66. This model is available in 30kg-300kg capacities.
Other capacities and configurations may be available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $454.00 |
| 10 - 24 | $431.30 |
| 25 - 49 | $417.68 |
| 50 - 99 | $404.06 |
| 100 + | $385.90 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108LSMT Features
- Material: Stainless Steel
- Rated Capacities: 30kg, 50kg, 100kg, 150kg, 200kg, 300kg
- 6 Wire, 2m Length Cable
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS-certified
Available Options: 30kg-YZ, 50kg-YZ, 100kg-YZ, 150kg-YZ, 200kg-YZ, & 300kg-YZ.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108LSMT Load Cell Specifications
| Rated Capacity | 30kg, 50kg, 100kg, 150kg, 200kg, 300kg |
| Reference Max. Platform Size | 500mm x 500mm |
| Full-Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 385Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
Technical Documents
 |
108LSMT Stainless Steel Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
 |
108LSMT-(30-300)kg |
Interchangeable Cross Reference
ANYLOAD 108LSMT Equivalents
| Manufacturer | Equivalent Model | Info |
| Mettler-Toledo | MT1241 | Mettler-Toledo MT1241 has an aluminum element |
| Mettler-Toledo | SSP1241 |
