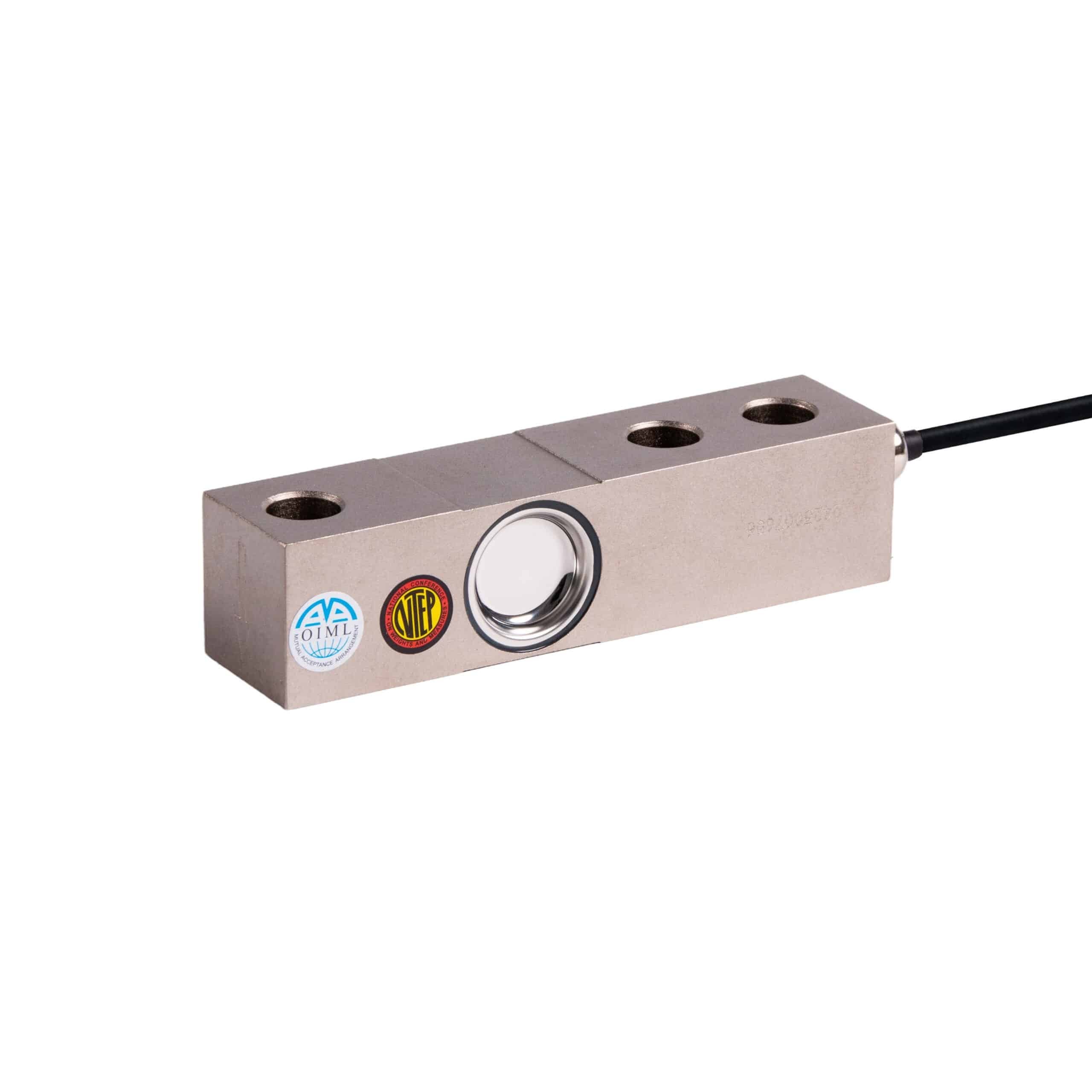

ANYLOAD 563YH-23 Alloy Steel Single-Ended Beam Load Cell
The ANYLOAD 563YH-23 Single-Ended Beam Load Cell is a cost-effective, low-profile device with IP67-rated water resistance and high resistance to shock, overload, and side loading. Made from nickel-plated alloy steel, it is ideal for higher-accuracy applications like platform scales, pallet scales, and process weighing. Available in capacities from 250lb to 20Klb.
Other capacities and configurations are available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $138.00 |
10-24 | 10 - 24 | 5% $131.10 |
25-49 | 25 - 49 | 8% $126.96 |
50-99 | 50 - 99 | 11% $122.82 |
100+ | 100 + | 15% $117.30 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YH-23 Features
The ANYLOAD 563YH-23 Single-Ended Beam Load Cell is a cost-effective and heavy-duty measuring device designed for applications requiring high accuracy, such as platform scales, pallet scales, and process weighing. Its low-profile design, combined with IP67-rated water resistance, ensures reliable performance even in harsh environments. The nickel-plated alloy steel construction provides excellent resistance to shock, overload, and side loading, making it durable and dependable. This model is available in a wide range of capacities, from 250lb to 20Klb, catering to various industrial needs. For those seeking robust performance in demanding conditions, the 563YH-23 is a trusted choice.
- Material: Nickel-plated alloy Steel
- Rated Capacities: 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb
- Full-Scale Output: 3mV/V± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:9 500 Class III, Multiple Cell and 1:5 000 Class III, Single Cell certified from 250lb-2.5Klb
- NTEP 1:10 000 Class III, Multiple Cell and 1:6 000 Class III, Single Cell certified from 4Klb-20Klb
- OIML MAA C4, Y=15 000 certified from 1Klb-5Klb
- OIML C6 certified from 10Klb-20Klb
- CE, RoHS, and Ex Certified
Available options: 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb & 20Klb.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YH-23 Load Cell Specifications
Rated Capacity | 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb |
Full Scale Output | 3mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < Cap.≤750lb:<±0.03%; Cap.>750lb:<±0.02% |
Repeatability | < ± 0.02% |
Hysteresis Error | < Cap.≤750lb:<±0.03%; Cap.>750lb:<±0.02% |
Creep in 30 minutes | < ± 0.025% |
Input Resistance | 350Ω ± 7Ω for lb |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP67 |
Technical Documents
Interchangeable Cross Reference
ANYLOAD 563YH-23 Equivalents
Manufacturer | Model |
---|---|
Coti Global | CG-23 |
Rice Lake | RL30000 |
Rice Lake | RL35023 |
Vishay Celtron | SQB |
Vishay Revere Transducers | 5123 |
Vishay Sensortronics | 65023A |
Vishay Tedea-Huntleigh | 3411 |
